PCS-M Series premium multi function speaker
PCS-M Series premium multi function speaker

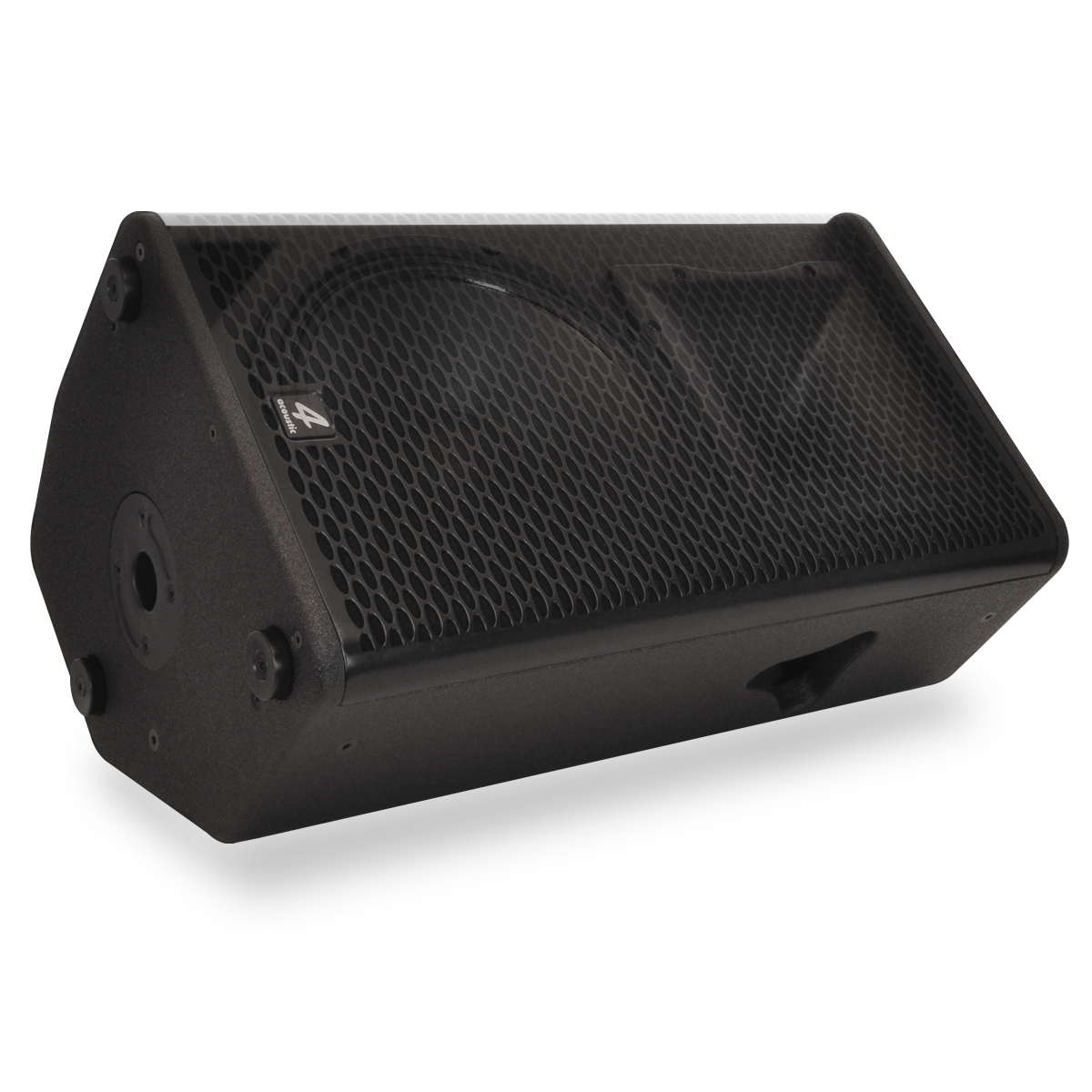

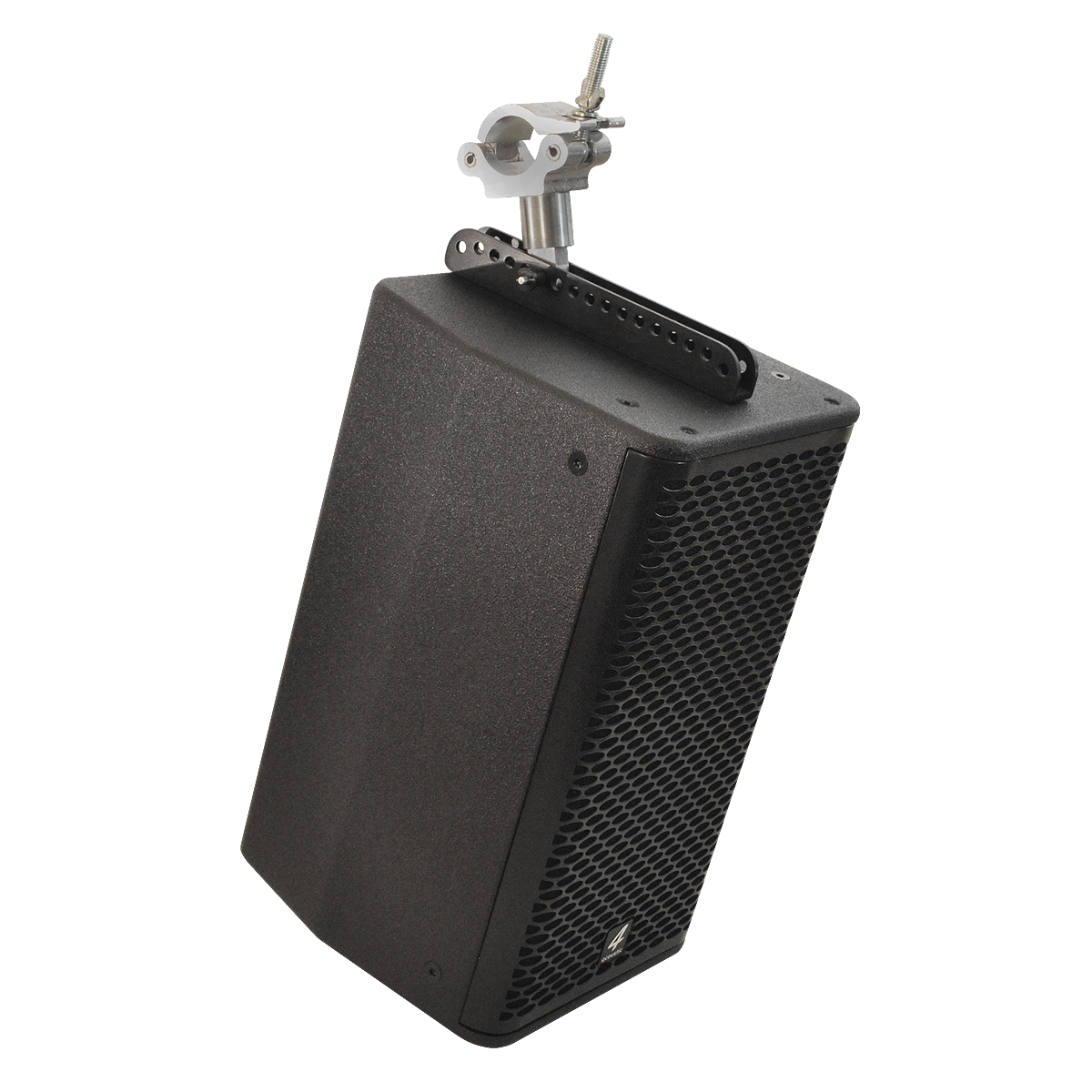

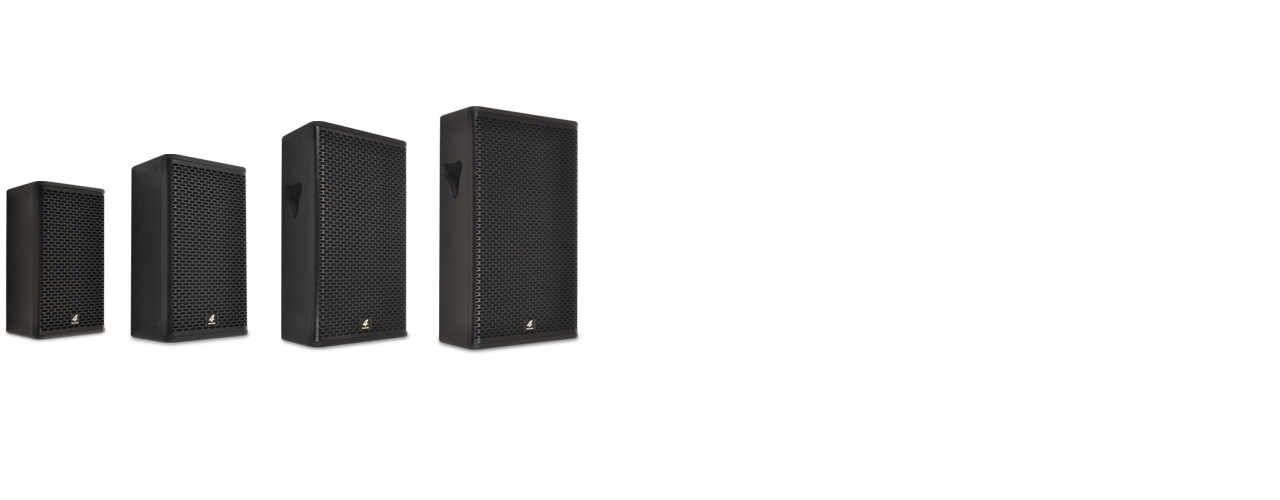

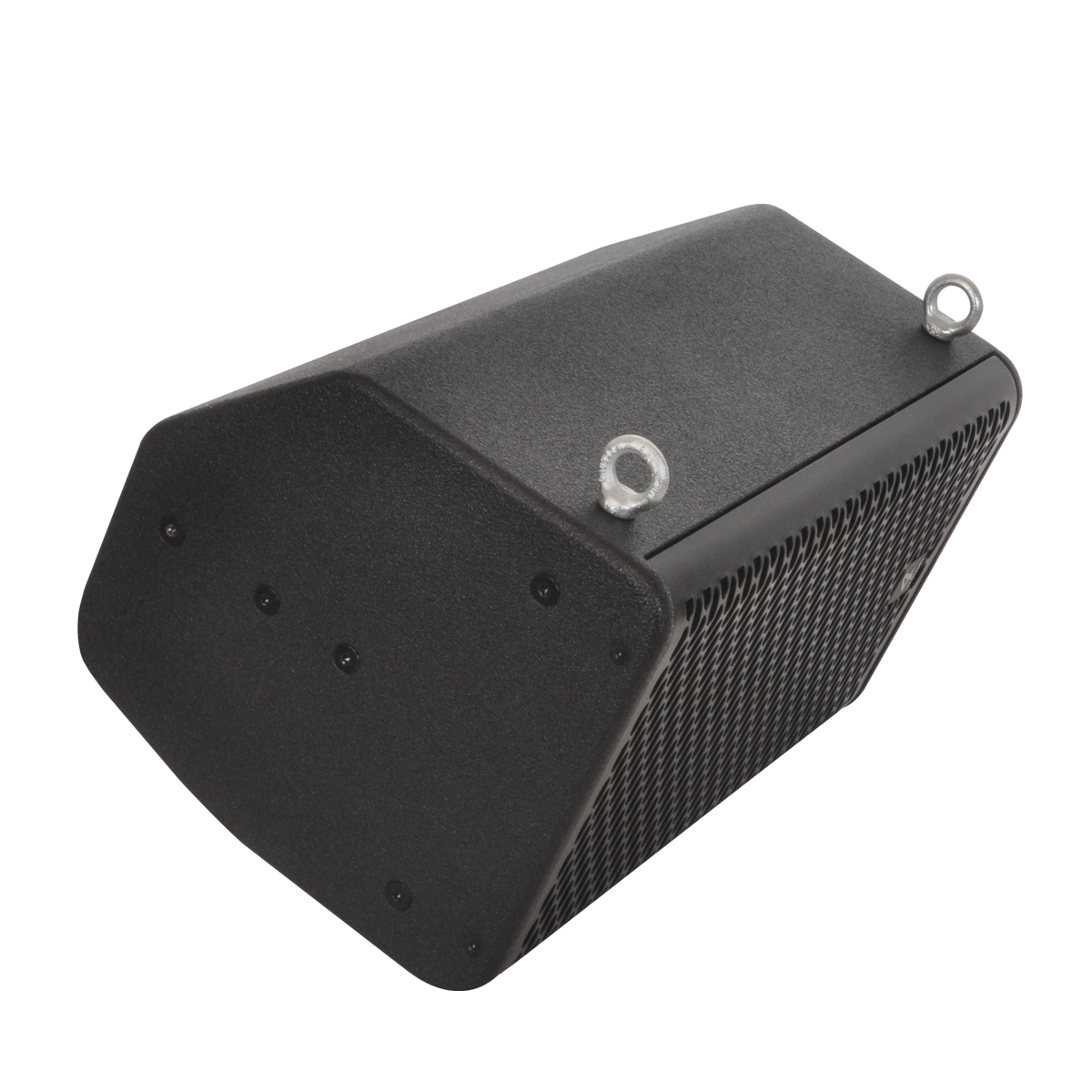

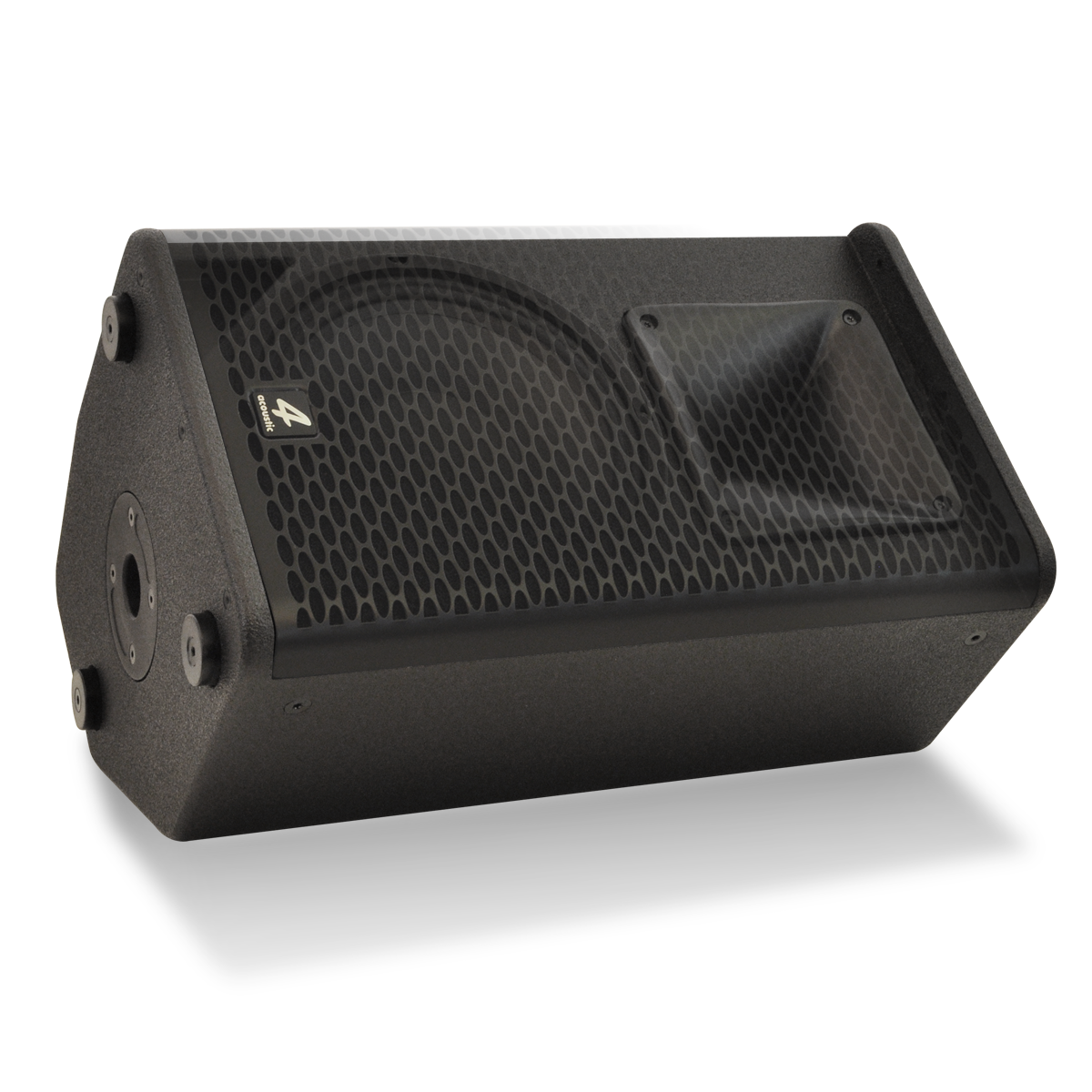

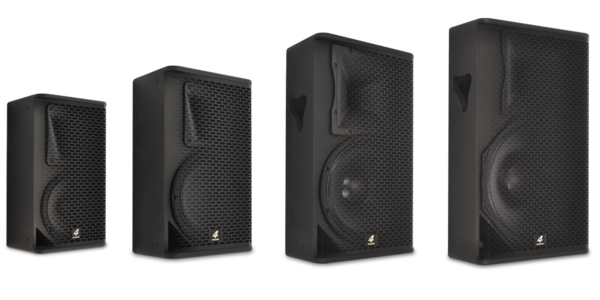

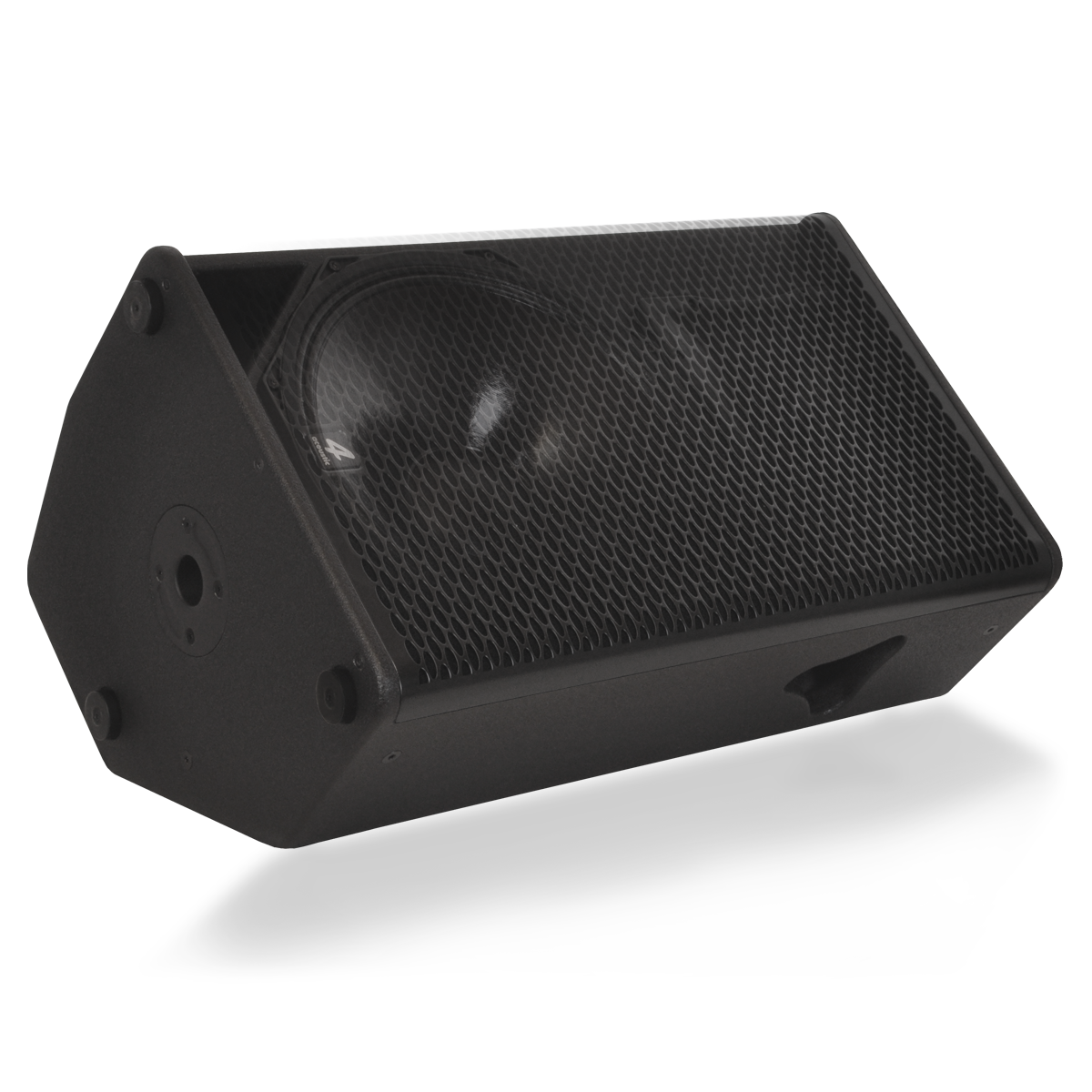

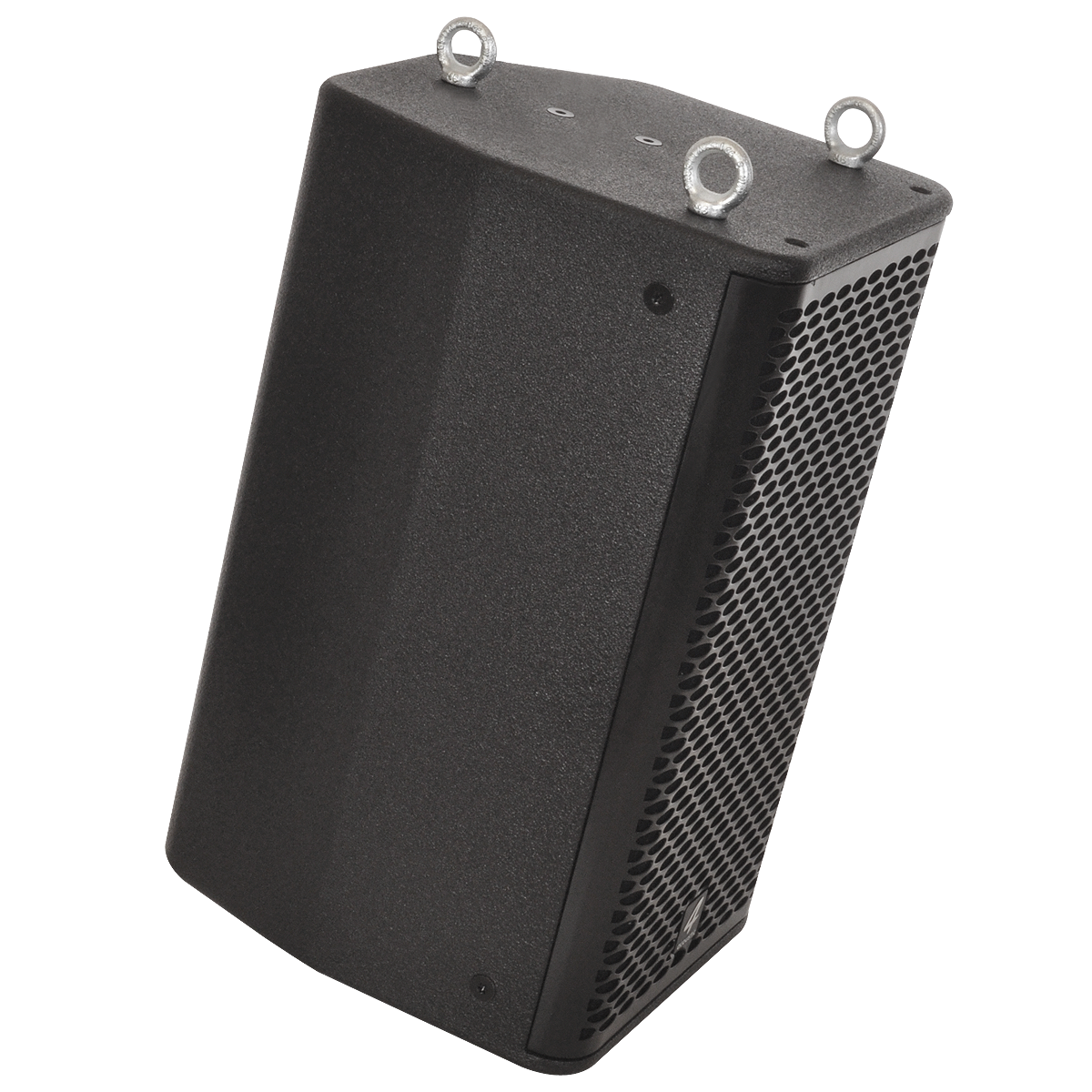

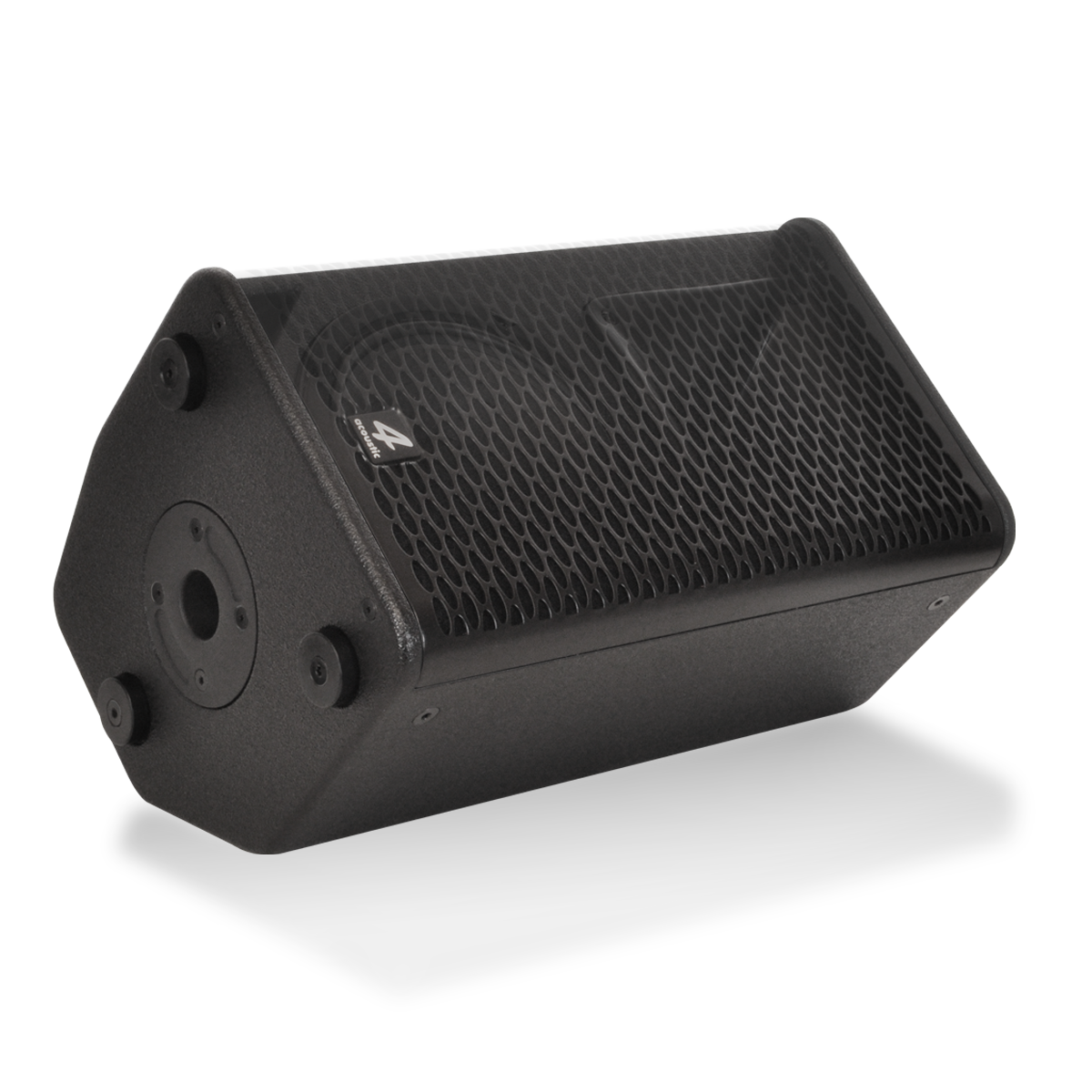

The PCS-M Series expands our product range with four high-quality multifunction full-range speakers in premium quality. All four models are equipped with precisely tuned crossovers networks. To optimize the coverage pattern to use as floor monitor the horn is 90° rotatable. The sound calibration of this series has transparent and clearly differentiated mid/high frequencies which provide a harmonious sound even at very high sound pressure levels. The workmanship is made without any compromises. The selection of the wood, varnish and speaker components is focused exclusively on the construction of a unique perfect sound speaker. All speakers of the PCS-M series have a VSL flight frame mounting base for wall, ceiling and truss installation, as well as various attachment points for hanging. Transportation covers are available optional.

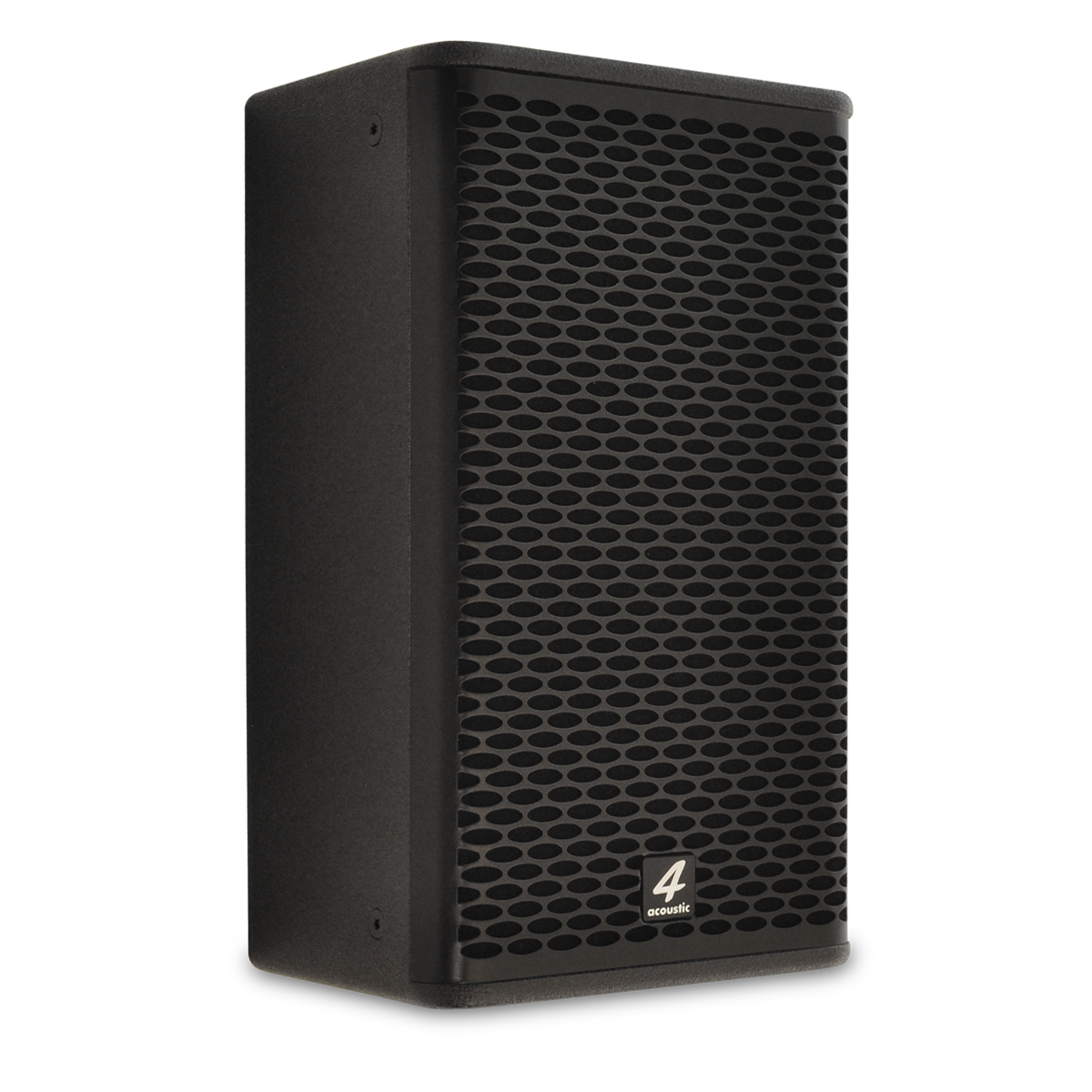

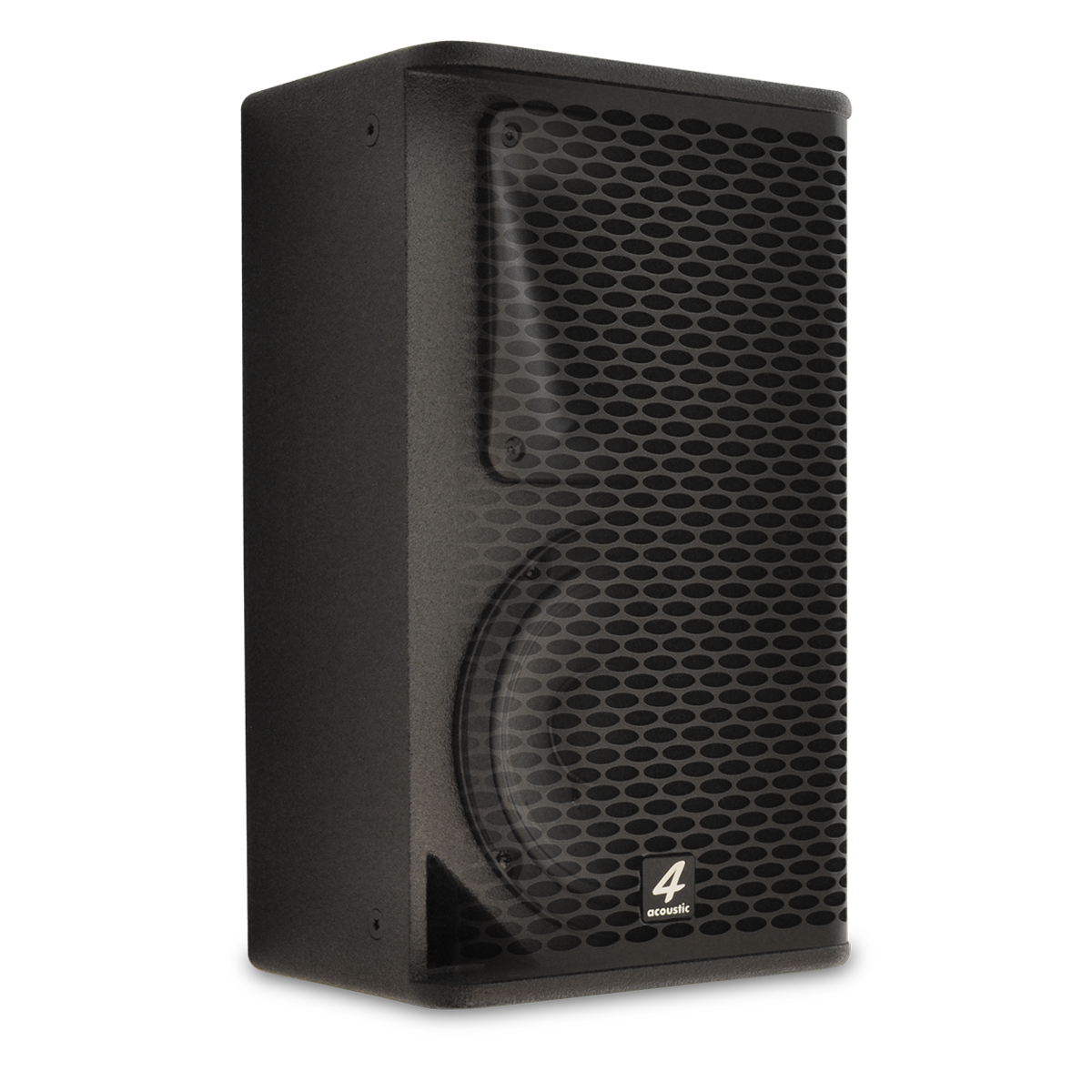

PCS-108M GS1 (EAN) CODE: 4260318510172

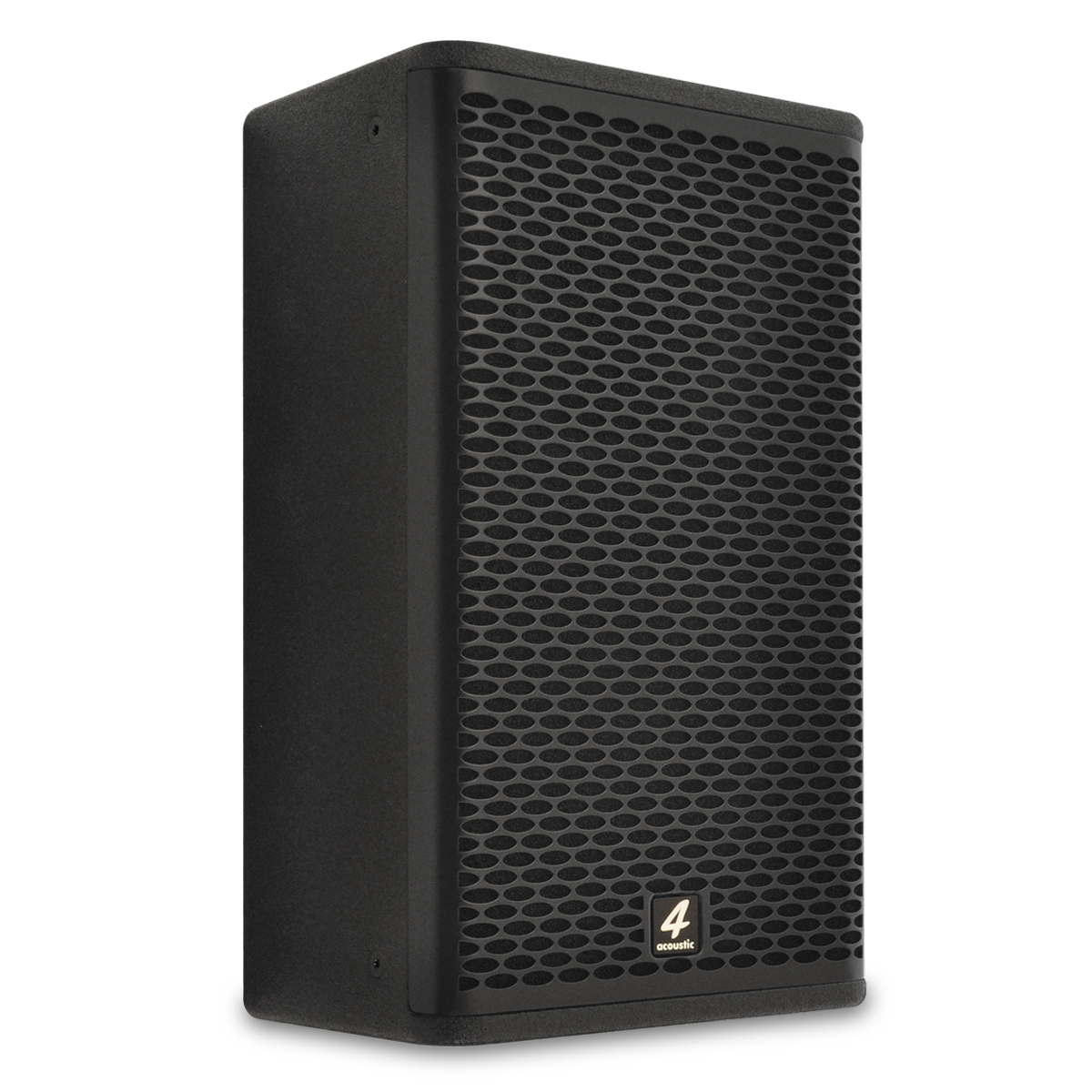

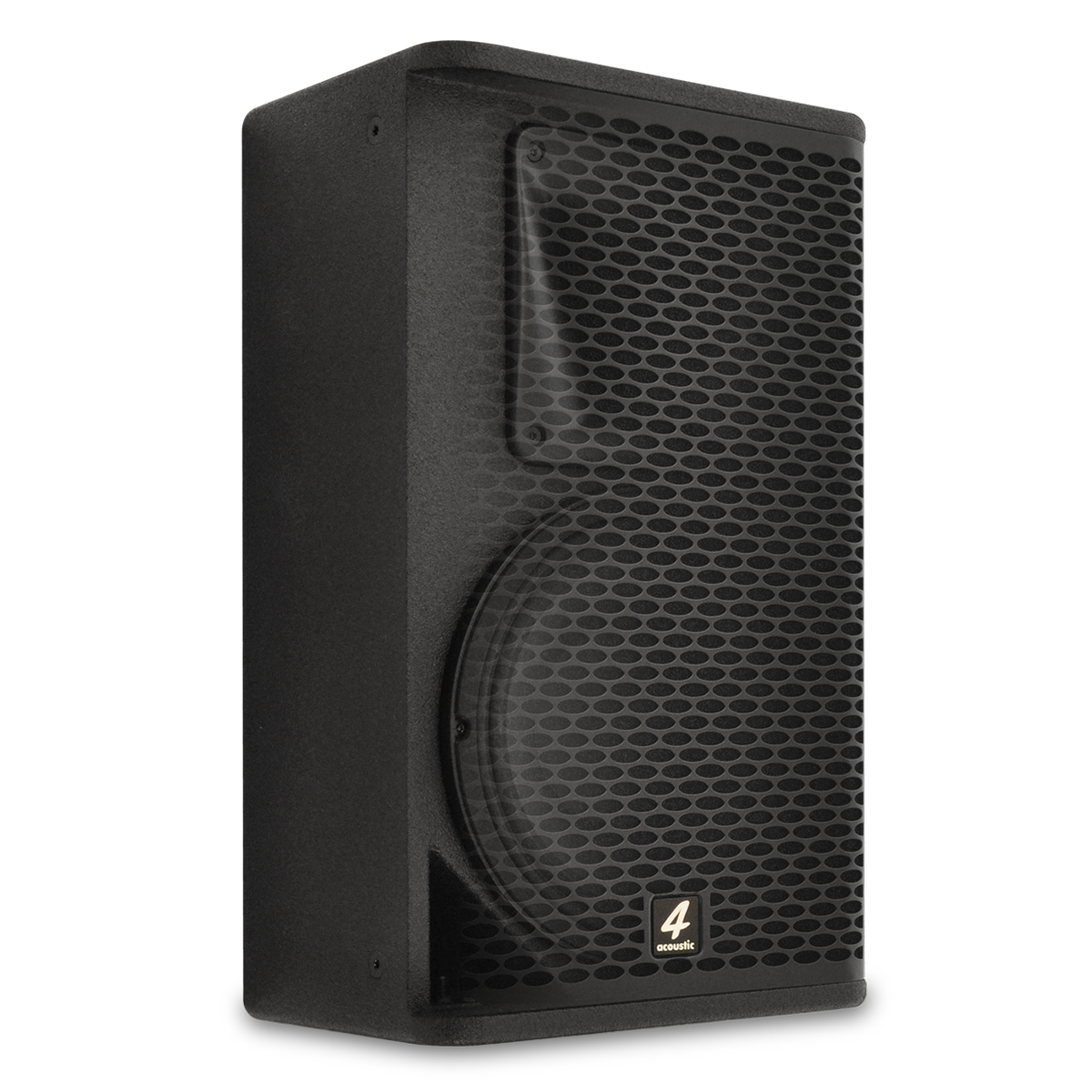

PCS-110M GS1 (EAN) CODE: 4260318510189

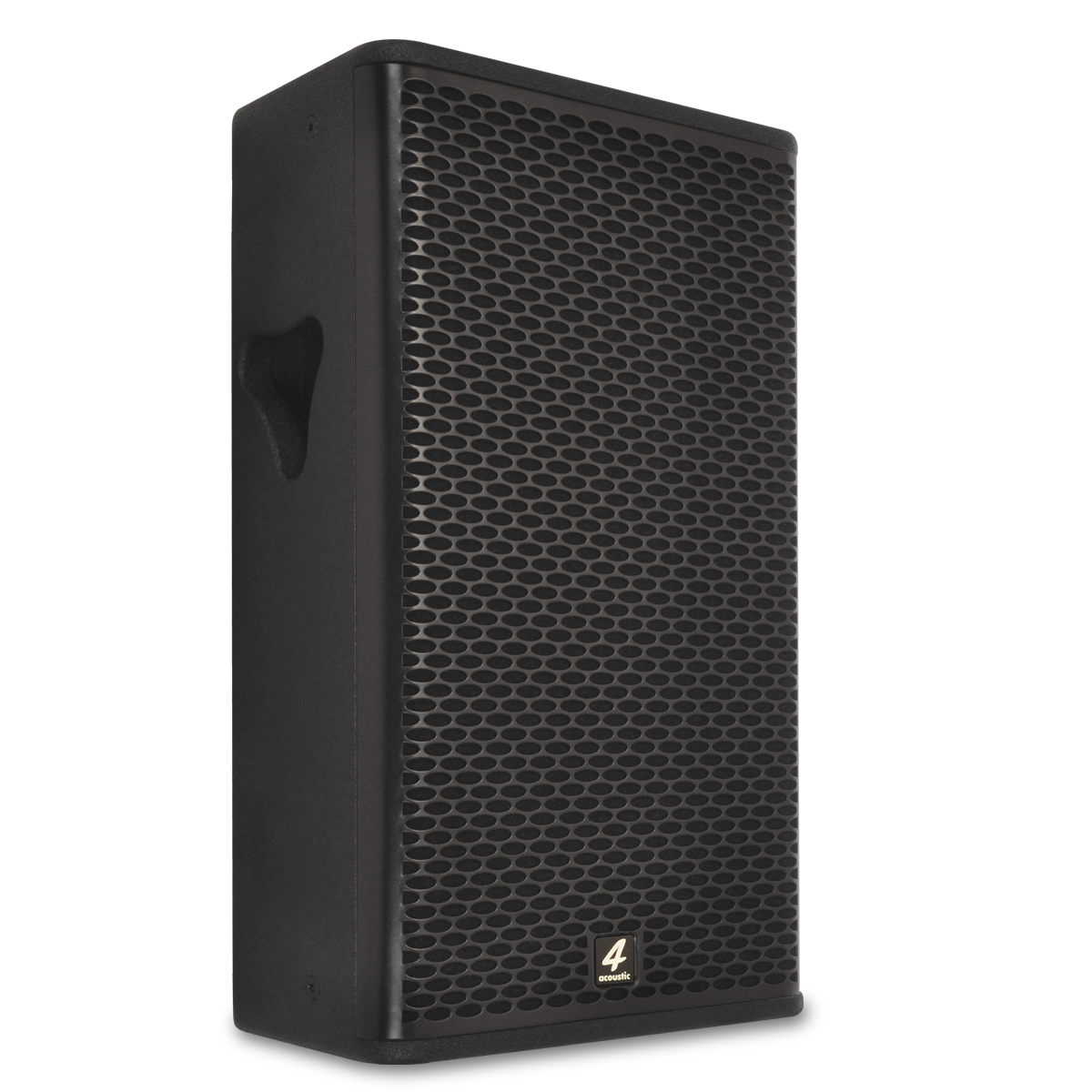

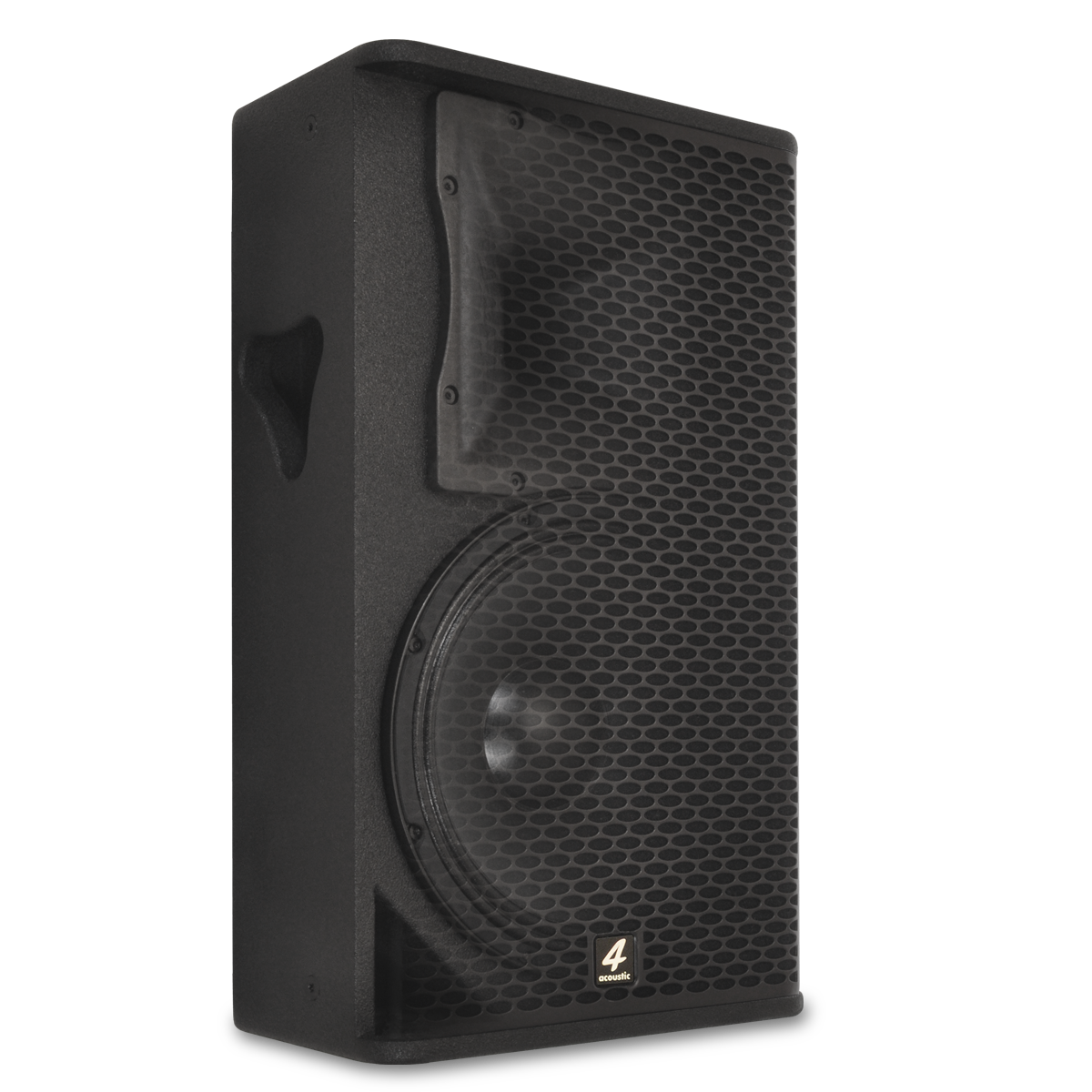

PCS-112M GS1 (EAN) CODE: 4260318510196

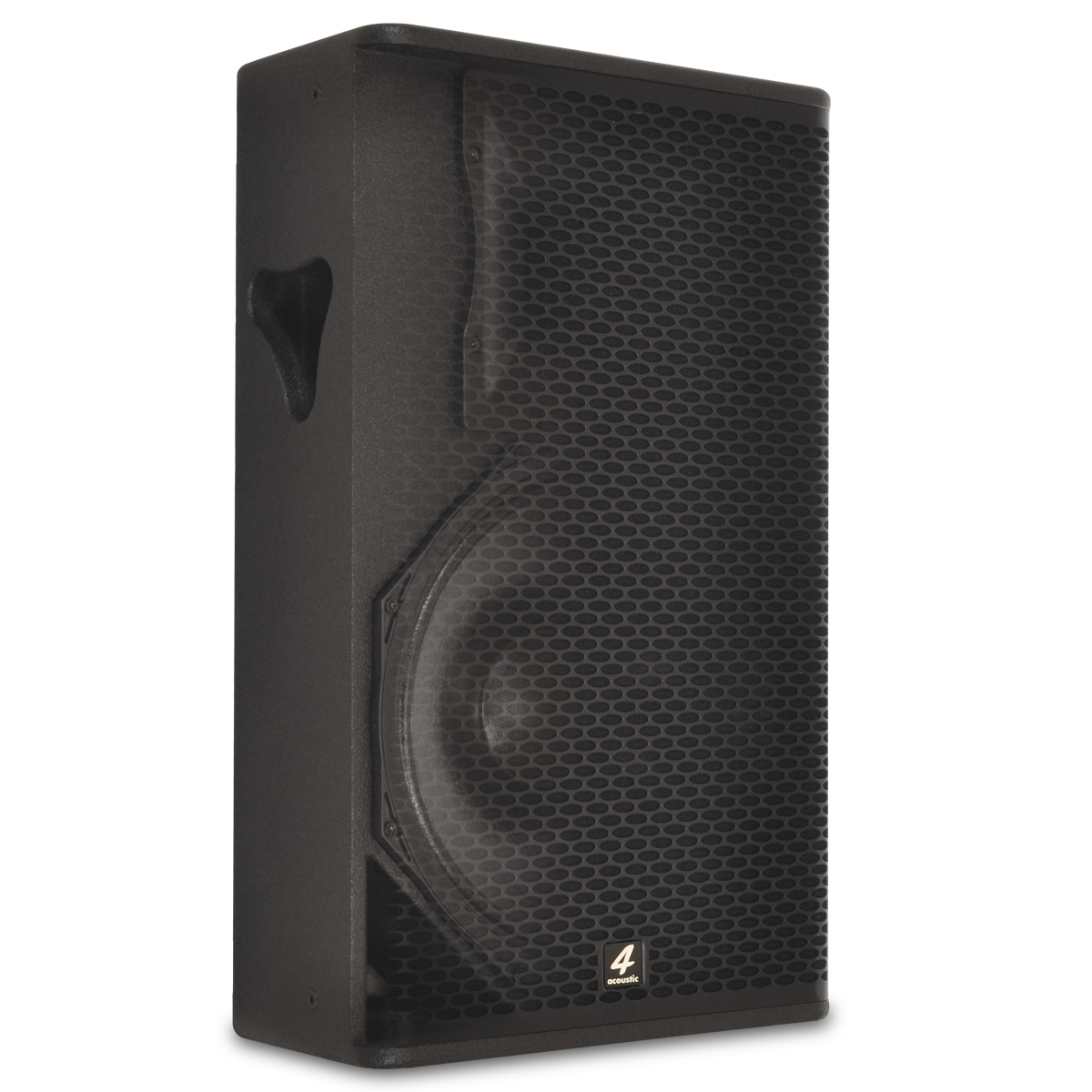

PCS-115M GS1 (EAN) CODE: 4260318510202
Technical Details
Model Name | PCS-108M | PCS-110M | PCS-112M | PCS-115M |
---|---|---|---|---|
GS1 (EAN) CODE | 4260318510172 | 4260318510189 | 4260318510196 | 4260318510202 |
System Type | 2-Way 8“+1“ Fullrange Speaker | 2-Way 10“+1“ Fullrange Speaker | 2-Way 12“+1,4“ Fullrange Speaker | 2-Way 15“+1,4“ Fullrange Speaker |
Power Rating | 250 W AES 500 W program 1000 W peak |
300 W AES 600 W program 1200 W peak |
500 W AES 1000 W program 2000 W peak |
600 W AES 1200 W program 2400 W peak |
Frequency Range (+/- 3 dB) | 53 Hz - 20 kHzz | 50 Hz - 20 kHz | 43 Hz - 20 kHz | 39 Hz - 20 kHz |
Coverage Pattern (hxv) | 90°x40° | 90°x40° | 90°x40° | 90°x40° |
Sensitivity | 97 dB 1w/1m | 98 dB 1w/1m | 101 dB 1w/1m | 103 dB 1w/1m |
Maximum SPL | 127 dB | 128 dB | 133 dB | 136 dB |
Woofer | 1 x STG-08M | 1 x STG-10M | 1 x STG-12M | 1 x STG-15M |
Driver | 1 x STG-44R | 1 x STG-44R | 1 x STG-75NB | 1 x STG-75NB |
Nominal Impedance | 8 Ohm | 8 Ohm | 8 Ohm | 8 Ohm |
Input Connectors | 2 x Neutrik NL4 Socket parallel 1+/1- | 2 x Neutrik NL4 Socket parallel 1+/1- | 2 x Neutrik NL4 Socket parallel 1+/1- | 2 x Neutrik NL4 Socket parallel 1+/1- |
Housing | Birch Multiplex | Birch Multiplex | Birch Multiplex | Birch Multiplex |
Suspension/Mounting | VESA 75 (Rückseite) 35 mm Stativhülse 8 x M8 Anschlagpunkte VLS-Aufnahme |
VESA 75 (Rückseite) 35 mm Stativhülse 10 x M8 Anschlagpunkte VLS-Aufnahme |
35 mm pole socket 20 x M8 suspension points VSL mounting base |
35 mm pole socket 20 x M8 suspension points VSL mounting base |
Coating | Anti-scratch Polyurethane coating | Anti-scratch Polyurethane coating | Anti-scratch Polyurethane coatingg | Anti-scratch Polyurethane coating |
Dimensions (h/w/d) | 450x260x239 mm | 510x300x278 mm | 610x350x324 mm | 690x410x364 mm |
Net weight | 13,0 Kg | 18,5 Kg | 23,0 Kg | 28,5 Kg |
Accessories
Order Code | GS1 (EAN) Code | Description |
---|---|---|
PCS-108M-BAG | 4260318511513 | Nylon protection transport bag |
PCS-110M-BAG | 4260318511520 | Nylon protection transport bag |
PCS-112M-BAG | 4260318511537 | Nylon protection transport bag |
PCS-115M-BAG | 4260318511544 | Nylon protection transport bag |
STG-STD | 4260318511032 | Tripot Speaker Stand |
KA-SP2-05 | 4260318510967 | 5 Meter Speaker cable 2x2,5qmm |
KA-SP2-10 | 4260318510974 | 10 Meter Speaker cable 2x2,5qmm |
KA-SP2-15 | 4260318510981 | 15 Meter Speaker cable 2x2,5qmm |
KA-SP2-20 | 4260318510998 | 20 Meter Speaker cable 2x2,5qmm |
SA-2080 | 4260318510820 | 2 Channel Class H Amplifier 2 x 800 Watt @ 8 ohm |
SA-2100 | 4260318510837 | 2 Channel Class H Amplifier 2 x 1000 W @ 8 ohm |
SA-2130 | 4260318510844 | 2 Channel Class H Amplifier 2 x 1300 Watt @ 8 ohm |
