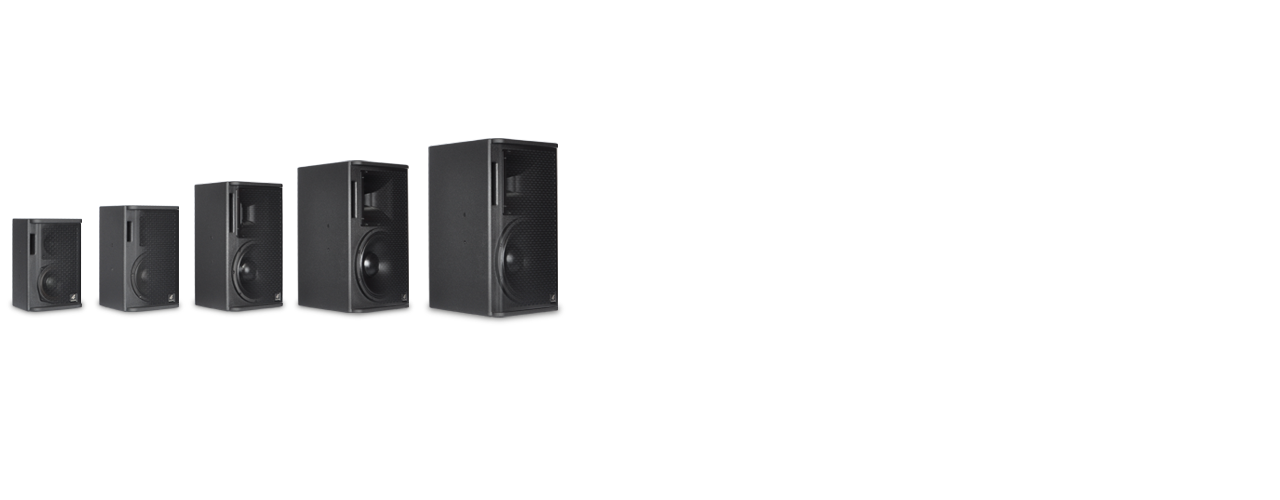

PCS-X Series full range installation speaker
PCS-X Series high end full range installation speaker

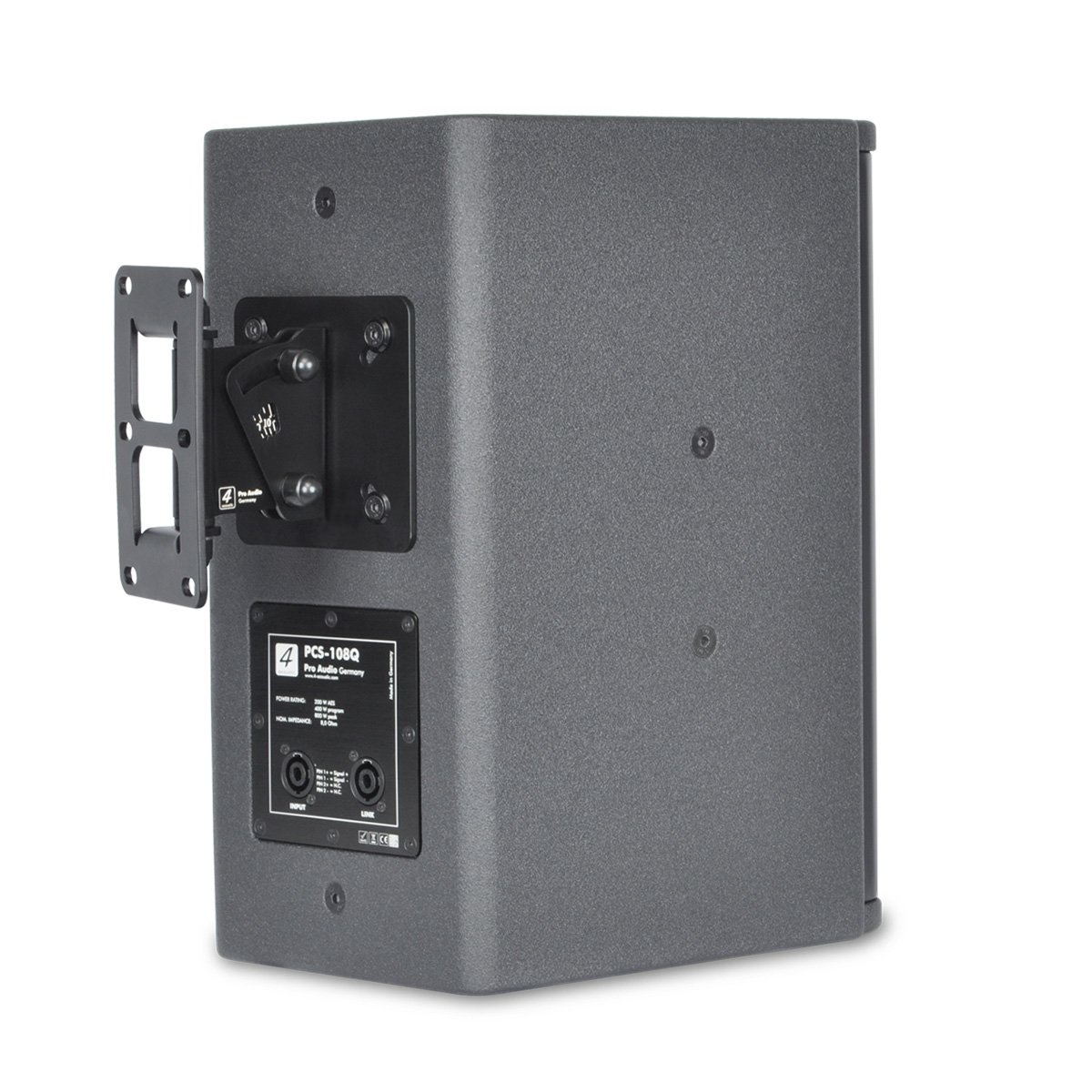

PCS-X is our high end full range series mainly designed for fixed installation. This series is equipped with premium components and convinced by linear frequency response and phase reproduction. The result delivers a transparent and pure sound experience. The PCS-X series needs no complicate EQ settings and can be almost used as plug and play. To correct the Coverage Pattern for vertically or horizontal installation, you can rotate the horn direction accordingly. The housing offers suspension points for wall and roof mounting in three direction, namely top, side, and back. PCS-X06 and PCS-X08 have Vesa 75 size M6 suspension points at the backside to use with our wall mounting kits. With our U-profile hanging kit, you will able to adjust the hanging angle properly to suit the different sound environment.
PCS-X06 GS1 (EAN) CODE: 4260318513197
PCS-X08 GS1 (EAN) CODE: 4260318513203
PCS-X10 GS1 (EAN) CODE: 4260318513210
PCS-X12 GS1 (EAN) CODE: 4260318513227
PCS-X15 GS1 (EAN) CODE: 4260318513234
Technical Details
| Model Name | PCS-X06 | PCS-X08 | PCS-X10 | PCS-X12 | PCS-X15 |
|---|---|---|---|---|---|
| GS1 (EAN) CODE | 4260318513197 | 4260318513203 | 4260318513210 | 4260318513227 | 4260318513234 |
| System Type | 2-Way 6,5“+1“ Fullrange Speaker |
2-Way 8“+1“ Fullrange Speaker |
2-Way 10“+1“ Fullrange Speaker |
2-Way 12“+1,4“ Fullrange Speaker |
2-Way 15“+1,4“ Fullrange Speaker |
| Power Rating | 100 W AES 200 W program 400 W peak |
200 W AES 400 W program 800 W peak |
300 W AES 600 W program 1200 W peak |
500 W AES 1000 W program 2000 W peak |
600 W AES 1200 W program 2400 W peak |
| Frequency Range (+/- 3 dB) | 57 Hz - 20 kHzz | 53 Hz - 20 kHz | 50 Hz - 20 kHz | 41 Hz - 20 kHz | 40 Hz - 20 kHz |
| Coverage Pattern (hxv) | 60° radial | 90°x40° | 90°x40° | 80°x50° | 80°x50° |
| Sensitivity | 95 dB 1w/1m | 96 dB 1w/1m | 98 dB 1w/1m | 101 dB 1w/1m | 101 dB 1w/1m |
| Maximum SPL | 117 dB | 122 dB | 128 dB | 136 dB | 136 dB |
| Woofer | 1 x STG-6Q | 1 x STG-10Q | 1 x STG-10Q | 1 x STG-12Q | 1 x STG-15Q |
| Driver | 1 x STG-34R | 1 x STG-34R | 1 x STG-45F | 1 x STG-75B | 1 x STG-75B |
| Nominal Impedance | 8 Ohm | 8 Ohm | 8 Ohm | 8 Ohm | 8 Ohm |
| Input Connectors | 2 x Neutrik NL4 Socket parallel 1+/1- |
2 x Neutrik NL4 Socket parallel 1+/1- |
2 x Neutrik NL4 Socket parallel 1+/1- |
2 x Neutrik NL4 Socket parallel 1+/1- |
2 x Neutrik NL4 Socket parallel 1+/1- |
| Housing | Birch Multiplex | Birch Multiplex | Birch Multiplex | Birch Multiplex | Birch Multiplex |
| Suspension/Mounting | VESA 75 (Backside) 10 x M8 suspension U-Profil-Base |
VESA 75 (Backside) 35 mm pole socket 10 x M8 suspension U-Profil-Base |
35 mm pole socket 10 x M8 suspension U-Profil-Base |
35 mm pole socket 10 x M8 suspension U-Profil-Base |
35 mm pole socket 10 x M8 suspension U-Profil-Base |
| Coating | Anti-scratch Polyurethane coating |
Anti-scratch Polyurethane coating |
Anti-scratch Polyurethane coating |
Anti-scratch Polyurethane coating |
Anti-scratch Polyurethane coating |

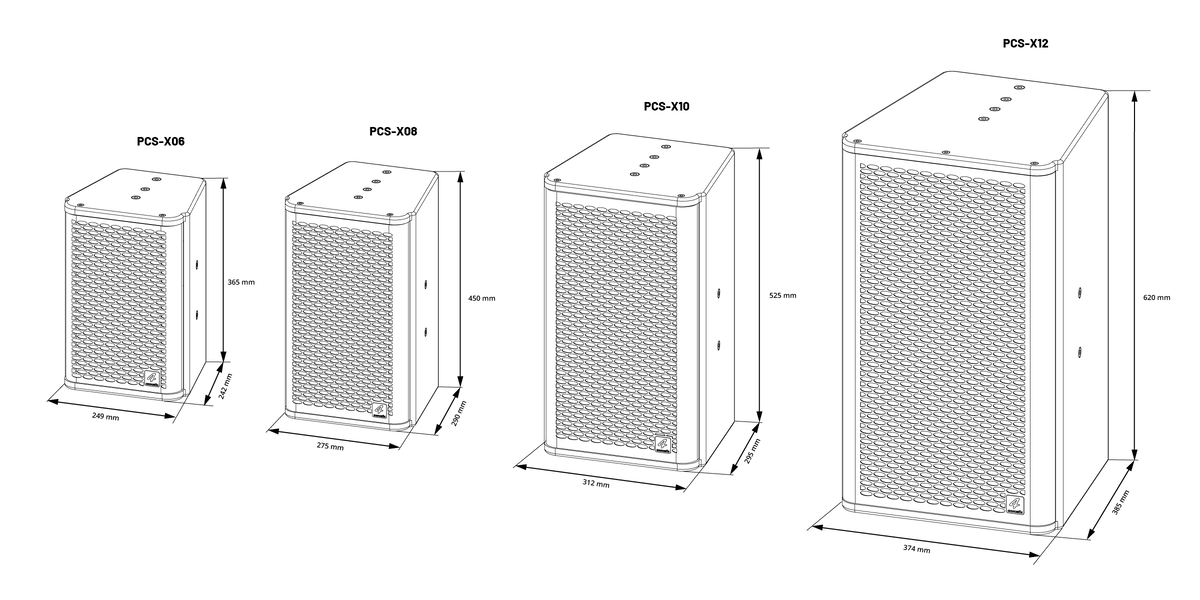

| Dimensions (h/w/d) | 365x249x242 mm | 450x275x290 mm | 525x312x295 mm | 620x374x385 mm | 700x419x436 mm |
| Net weight | 9,5 Kg | 13,0 Kg | 16,5 Kg | 23,0 Kg | 34,0 Kg |
