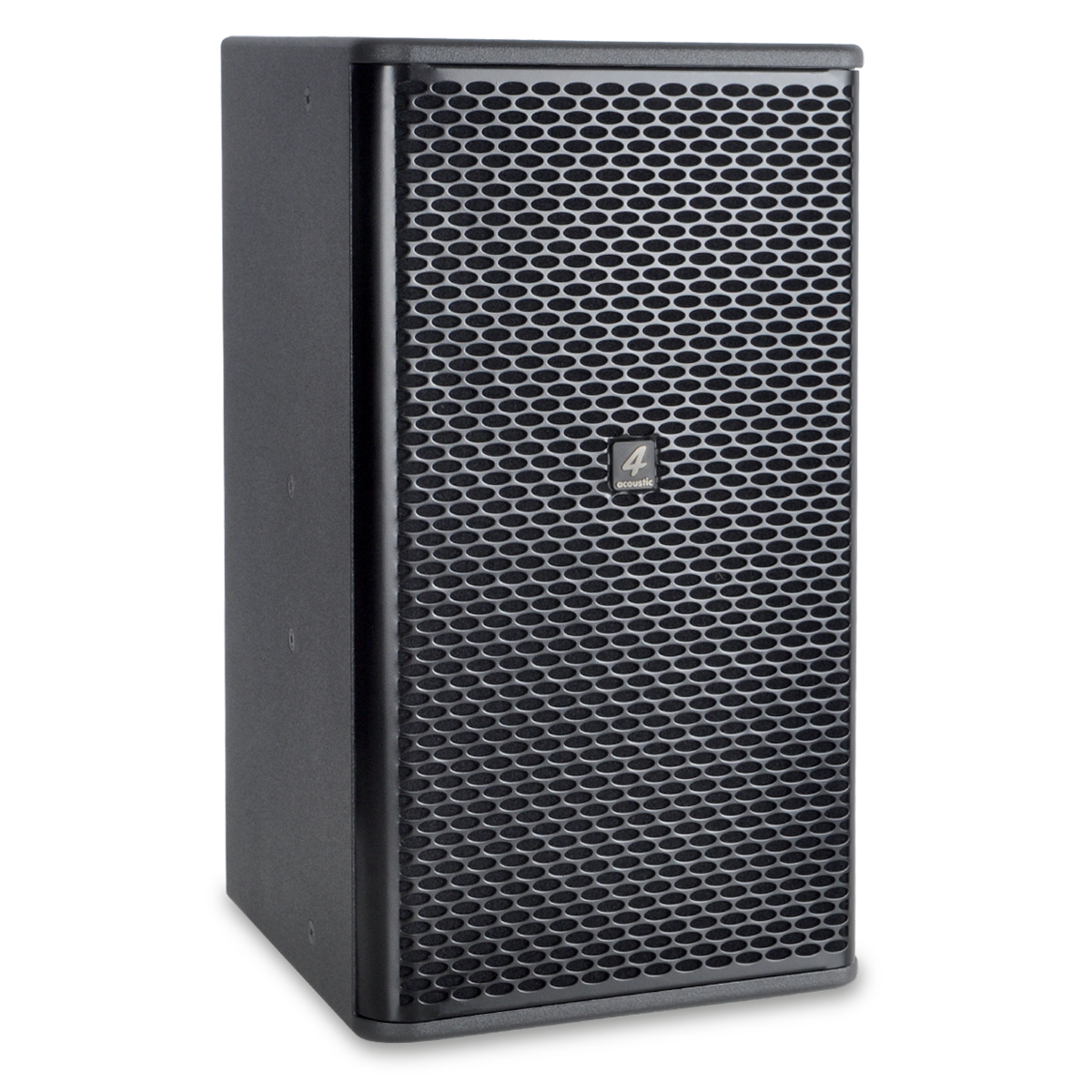

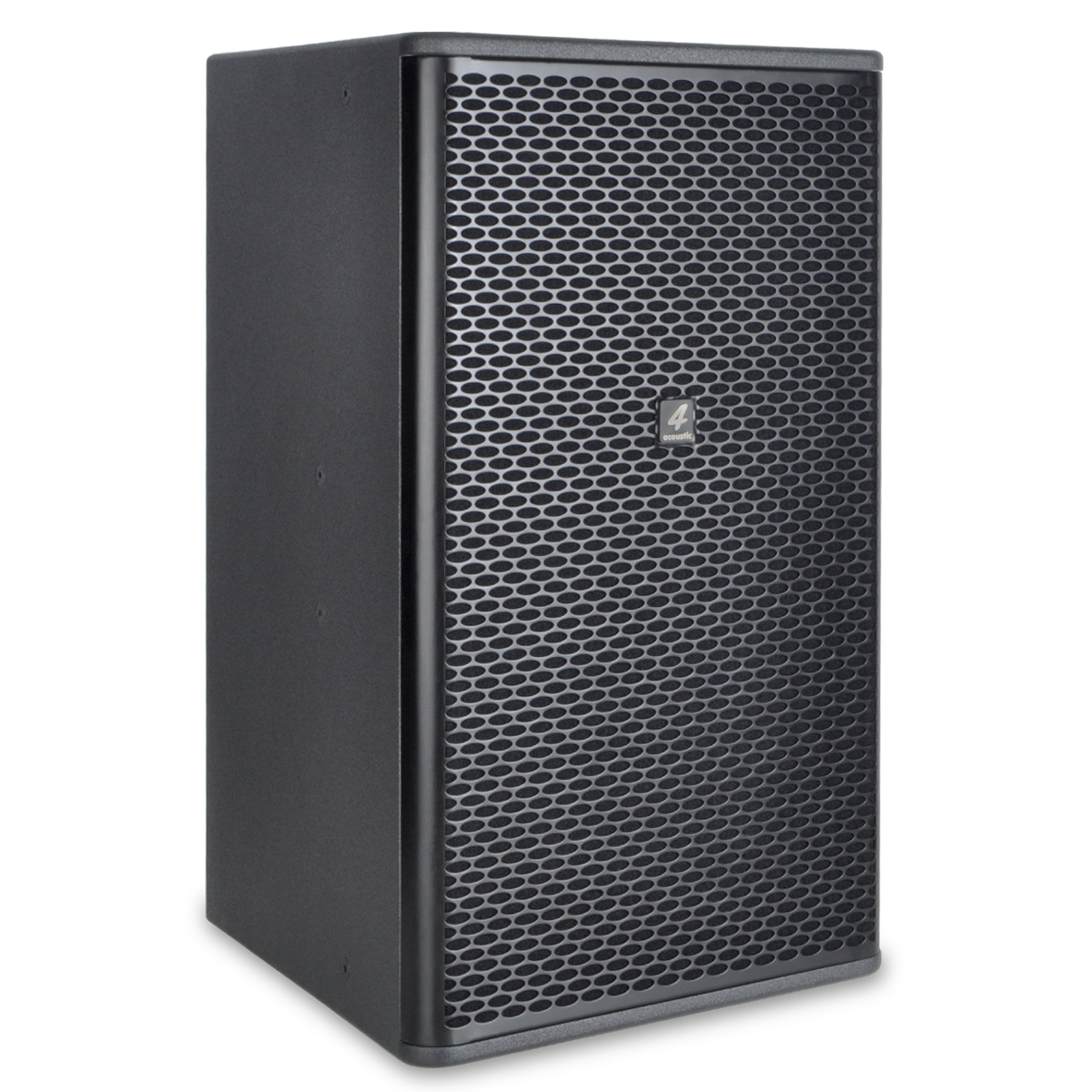

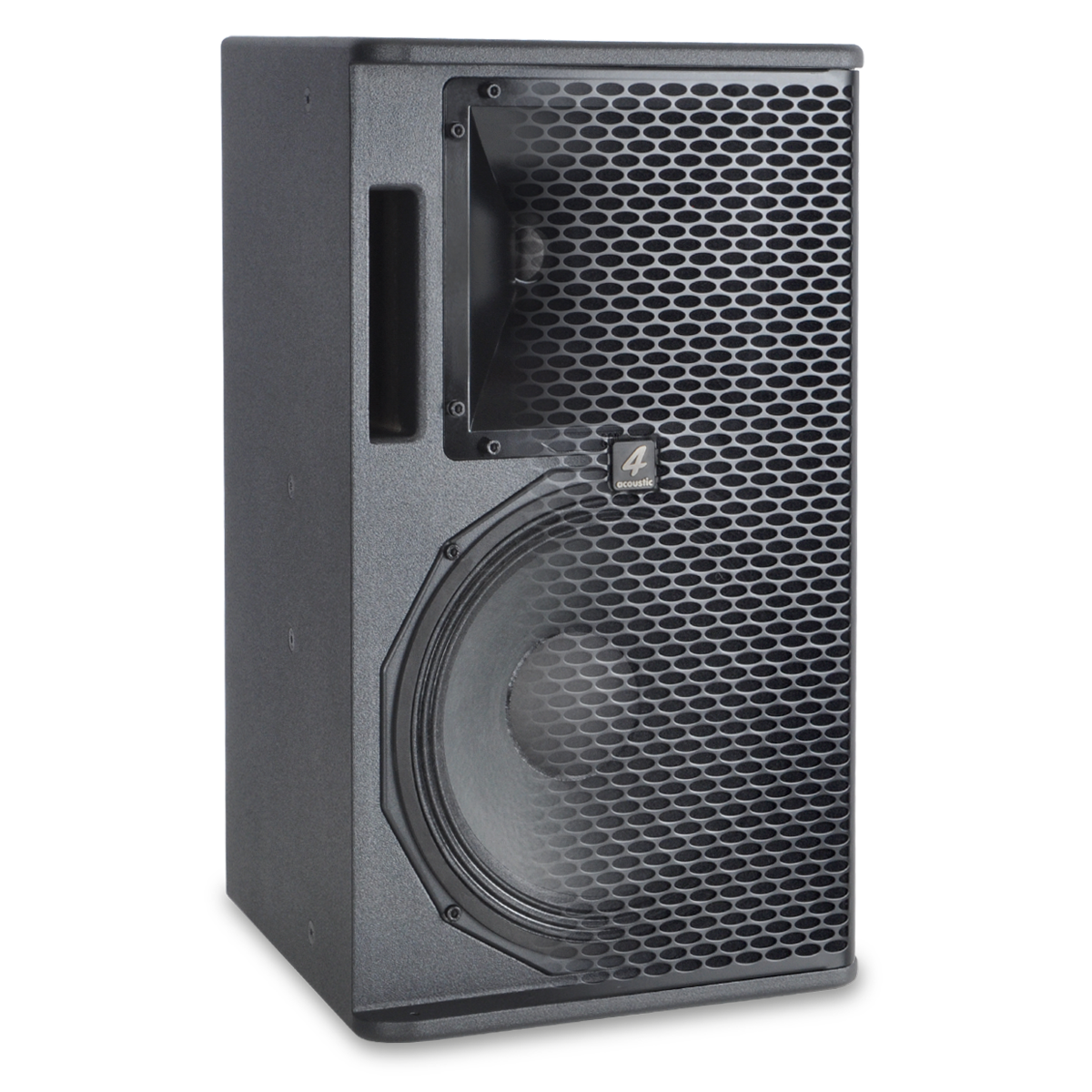

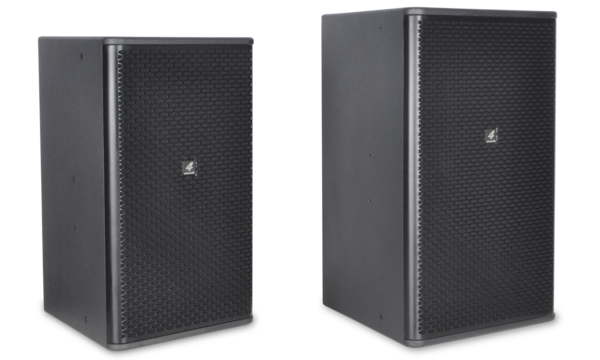

SC Series full range speaker
High-End full-range speaker series!

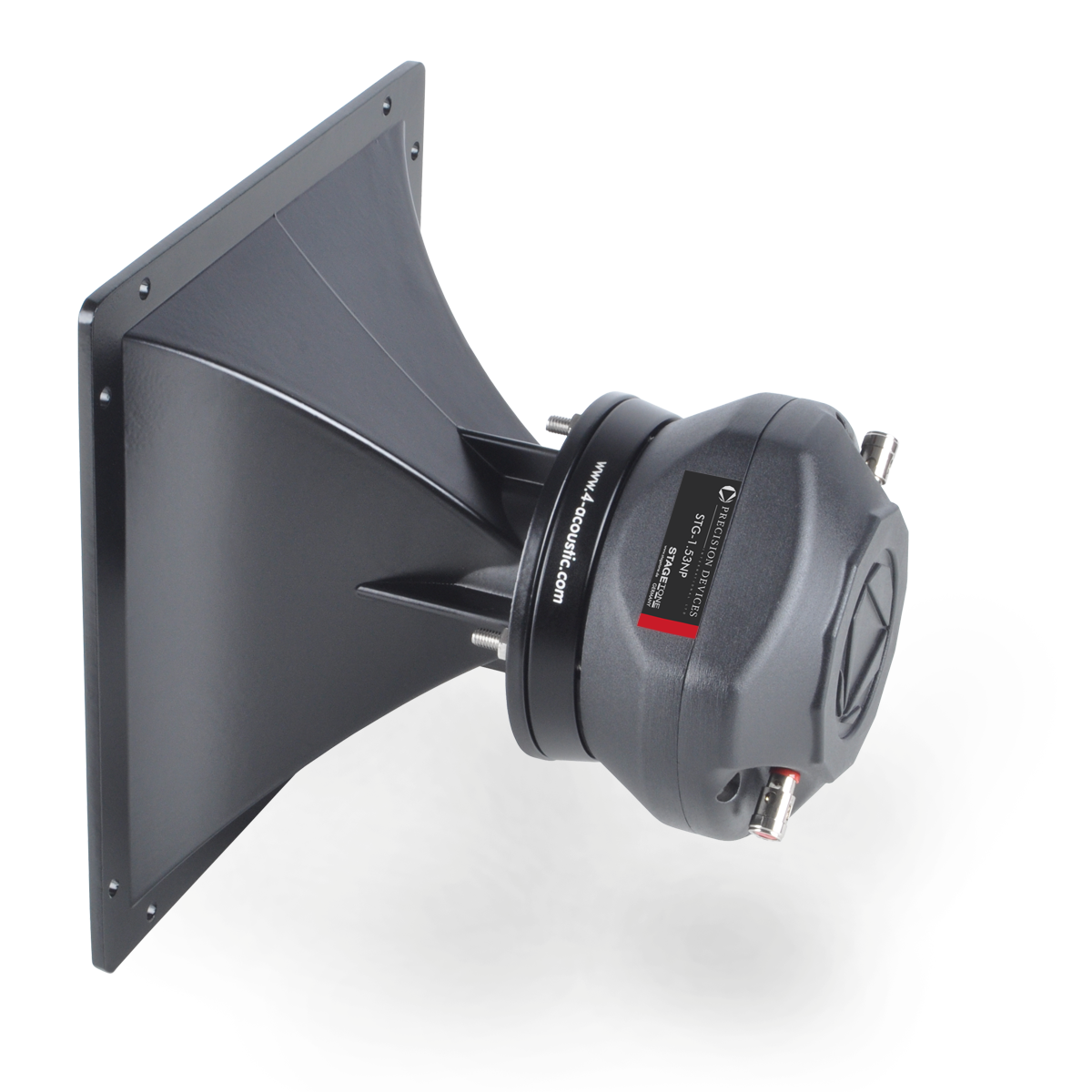

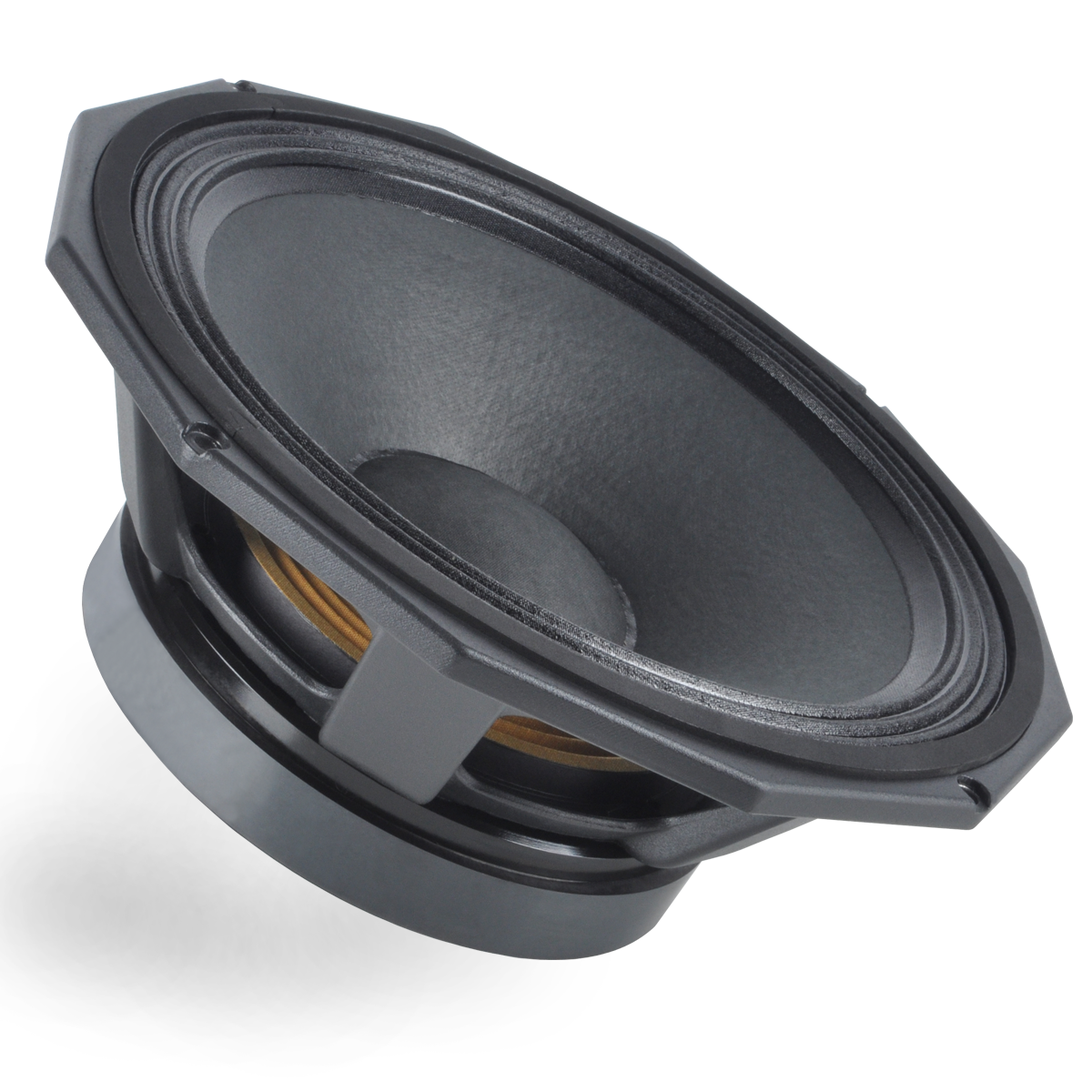

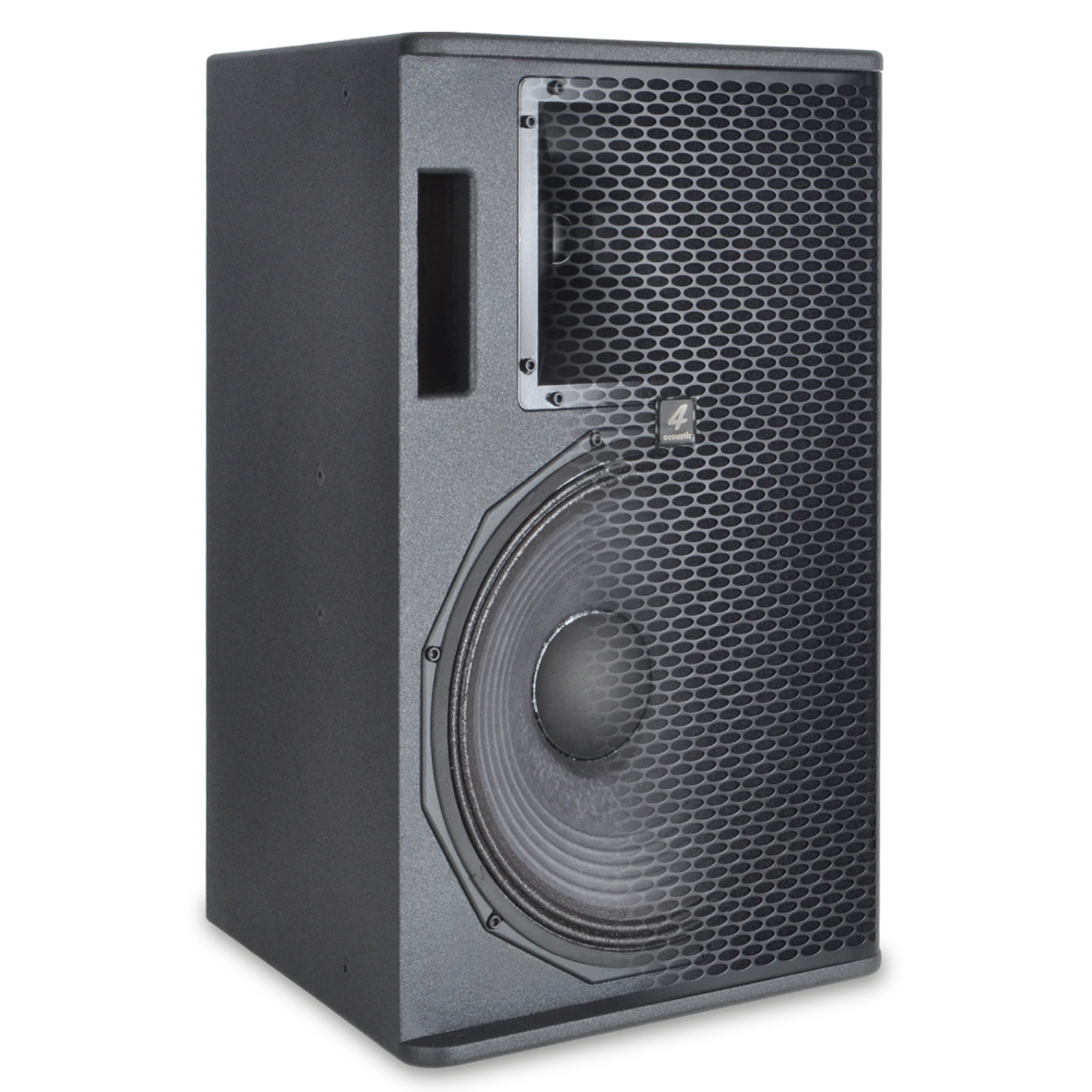

The SC series is our newly developed high-end full range speaker series especially designed for high-end fixed installations and occasions. This series is equipped with customized Stagetone driver & woofer produced by famous UK brand Precision Devices. The neodymium driver STG-1.53NP with 72,2 mm voice coil is mounted on a constant directivity aluminum horn with 50x80° coverage pattern. The woofer STG-123FP offers excellent linear response well controlled down to 40Hz (SC-12 = 50Hz). The high woofers BL provides the required good punch. The Mid/High frequency range is extremely transparent and clear which regale you ear by plenty of instrumental details. The anti-scratching & water-resistant housing is equipped with suspension points for several different mounting applications. With our U-profile hanging kit, you will able to adjust the hanging angle properly to suit the different sound environment.
SC-12 GS1 (EAN) CODE: 4260318511728
SC-15 GS1 (EAN) CODE: 4260318511735
Technical Details
Model Name | SC-12 | SC-15 |
---|---|---|
GS1 (EAN) CODE | 4260318511728 | 4260318511735 |
System Type | 2-Way 12“+1,5“ Fullrange Speaker | 2-Way 15“+1,5“ Fullrange Speaker |
Power Rating | 550 W AES 1100 W program 2200 W peak |
600 W AES 1200 W program 2400 W peak |
Frequency Range (+/- 3 dB) | 50 Hz - 20 kHz | 40 Hz - 20 kHz |
Coverage Pattern (hxv) | 80°x50° | 80°x50° |
Sensitivity | 98 dB 1w/1m | 101 dB 1w/1m |
Maximum SPL | 128 dB | 136 dB |

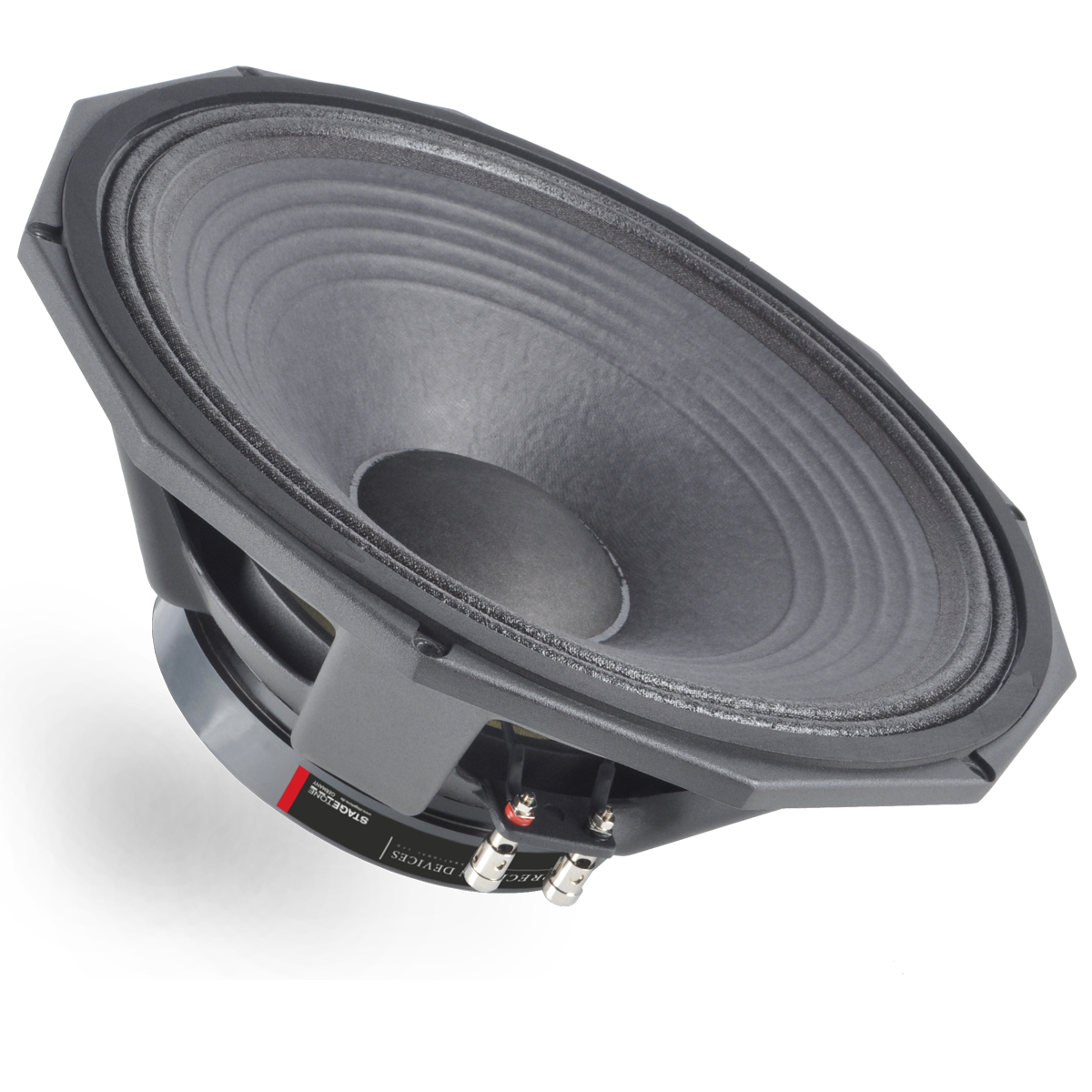

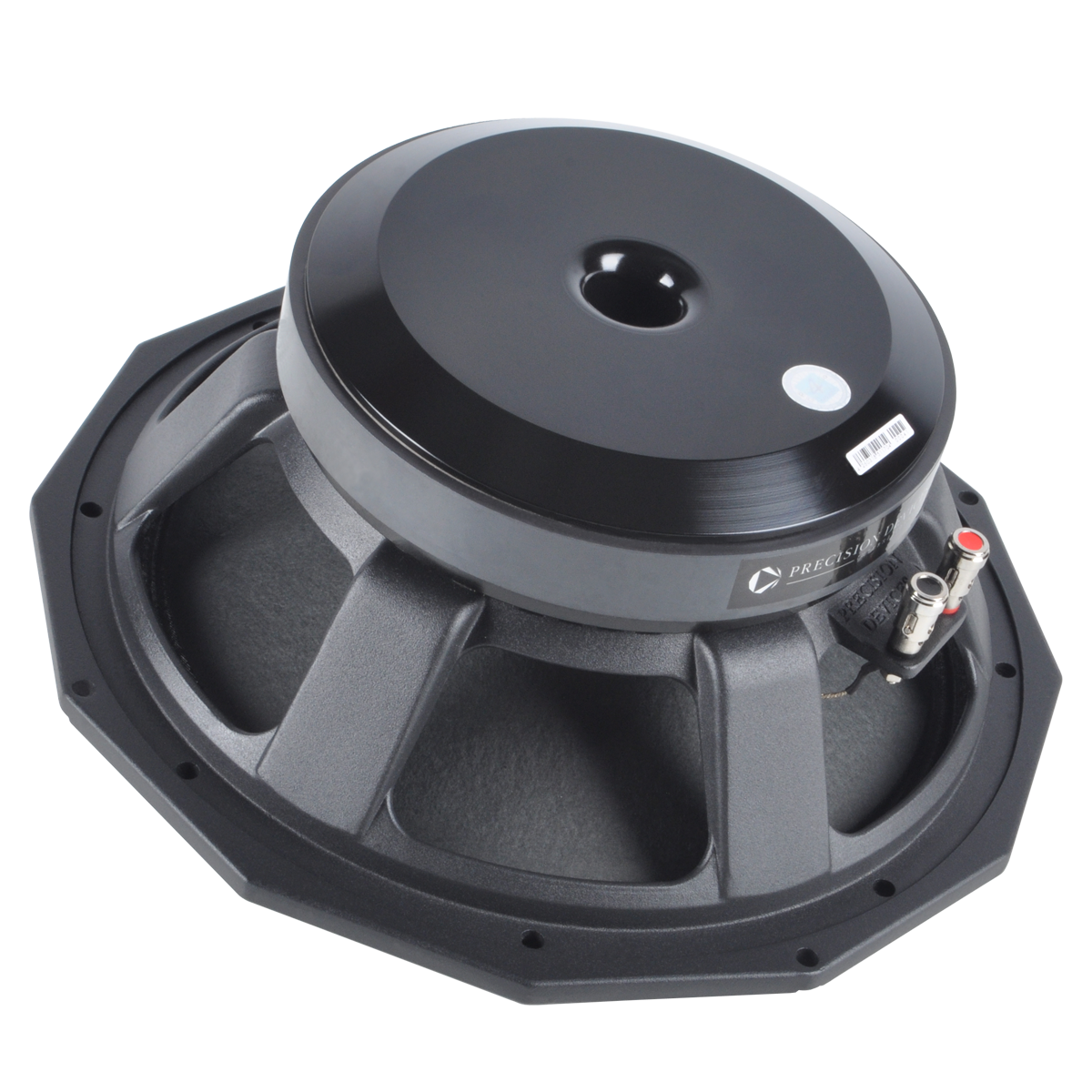

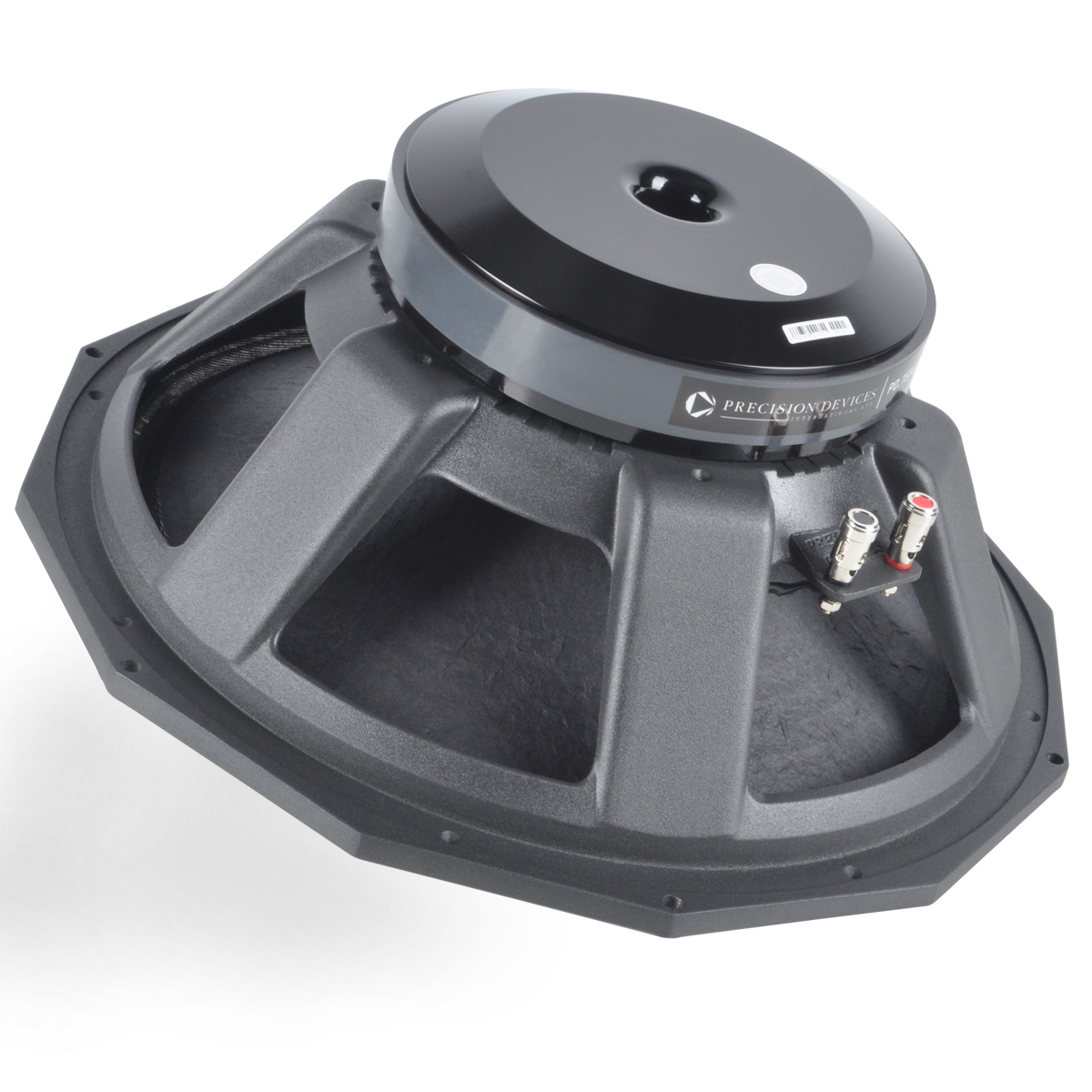

Woofer | 1 x STG-123FP | 1 x STG-153FP |
Driver | STG-1.53NP | STG-1.53NP |
Nominal Impedance | 8 Ohm | 8 Ohm |

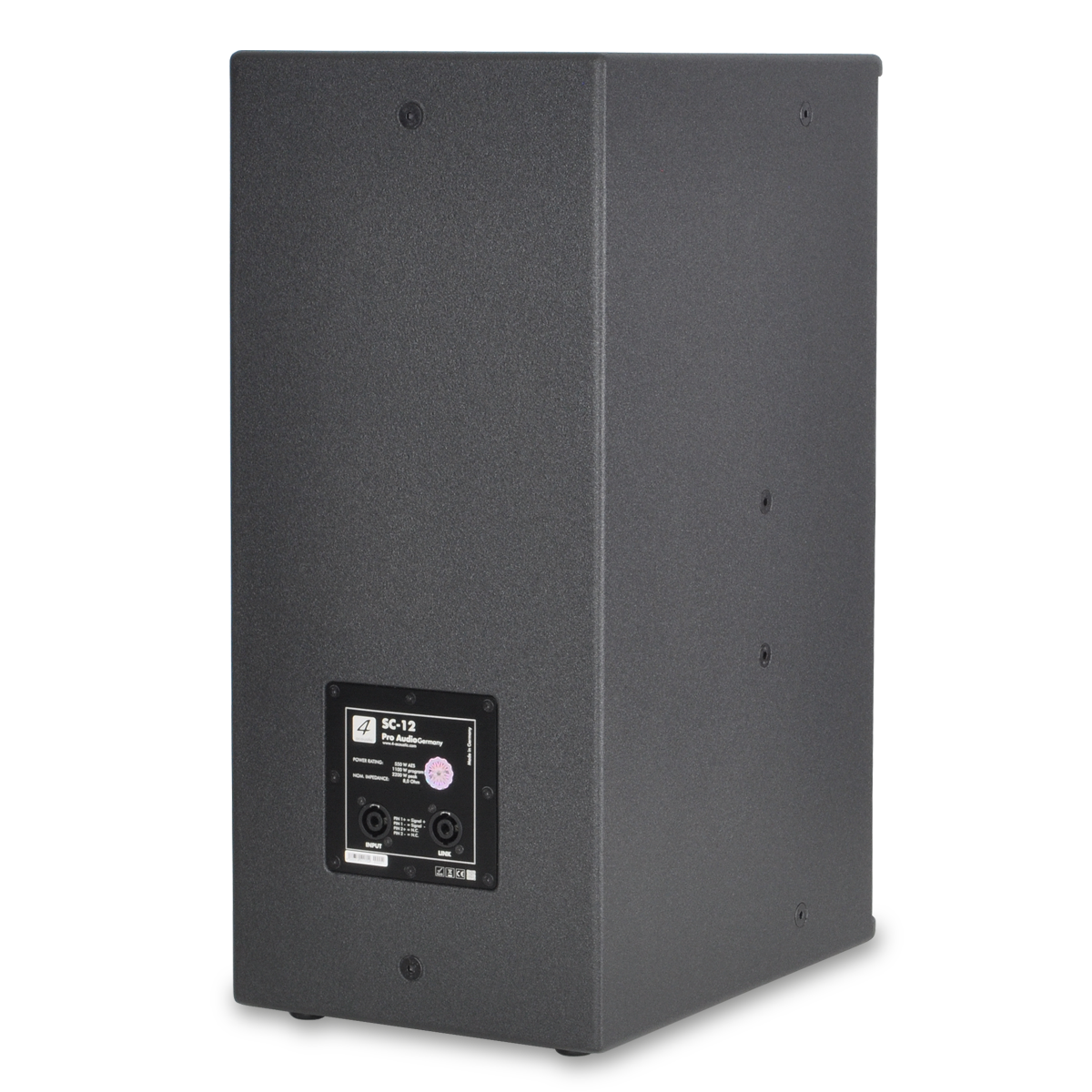

Input Connectors | 2 x Neutrik NL4 Socket parallel 1+/1- | 2 x Neutrik NL4 Socket parallel 1+/1- |
Housing | Birch Multiplex | Birch Multiplex |

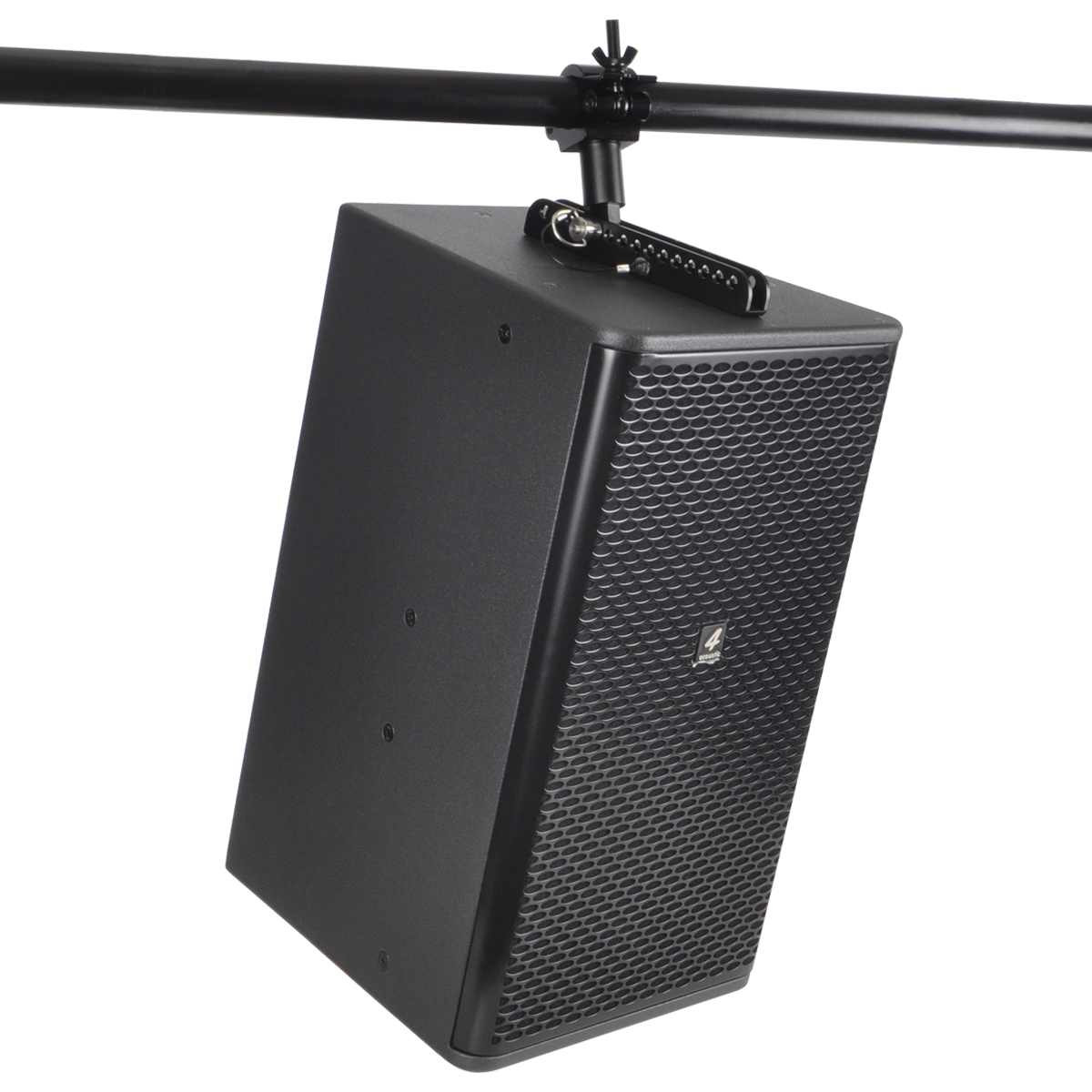

Suspension/Mounting | 35 mm pole socket 15 x M8 suspension U-Profil-Base |
35 mm pole socket 15 x M8 suspension U-Profil-Base |
Coating | Anti-scratch Polyurethane coatingg | Anti-scratch Polyurethane coating |
Dimensions (h/w/d) | 610x361x377 mm | 700x431,5x436 mm |
Net weight | 29,0 Kg | 34,0 Kg |
Accessories
Order Code | GS1 (EAN) Code | Description |
---|---|---|
STG-STD | 4260318511032 | Tripot Speaker Stand |
KA-SP2-05 | 4260318510967 | 5 Meter Speaker cable 2x2,5qmm |
KA-SP2-10 | 4260318510974 | 10 Meter Speaker cable 2x2,5qmm |
KA-SP2-15 | 4260318510981 | 15 Meter Speaker cable 2x2,5qmm |
KA-SP2-20 | 4260318510998 | 20 Meter Speaker cable 2x2,5qmm |
SA-2080 | 4260318510820 | 2 Channel Class H Amplifier 2 x 800 Watt @ 8 ohm |
SA-2100 | 4260318510837 | 2 Channel Class H Amplifier 2 x 1000 W @ 8 ohm |
SA-2130 | 4260318510844 | 2 Channel Class H Amplifier 2 x 1300 Watt @ 8 ohm |
