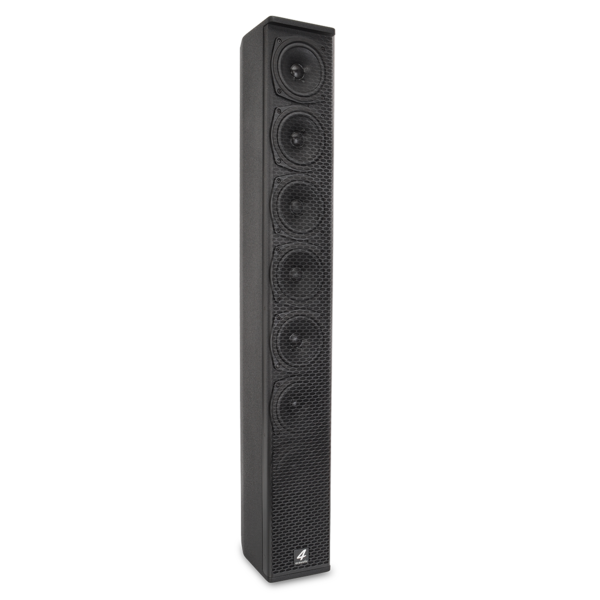

HCS-804 Multi function column speaker
HCS-804 Multi function column speaker

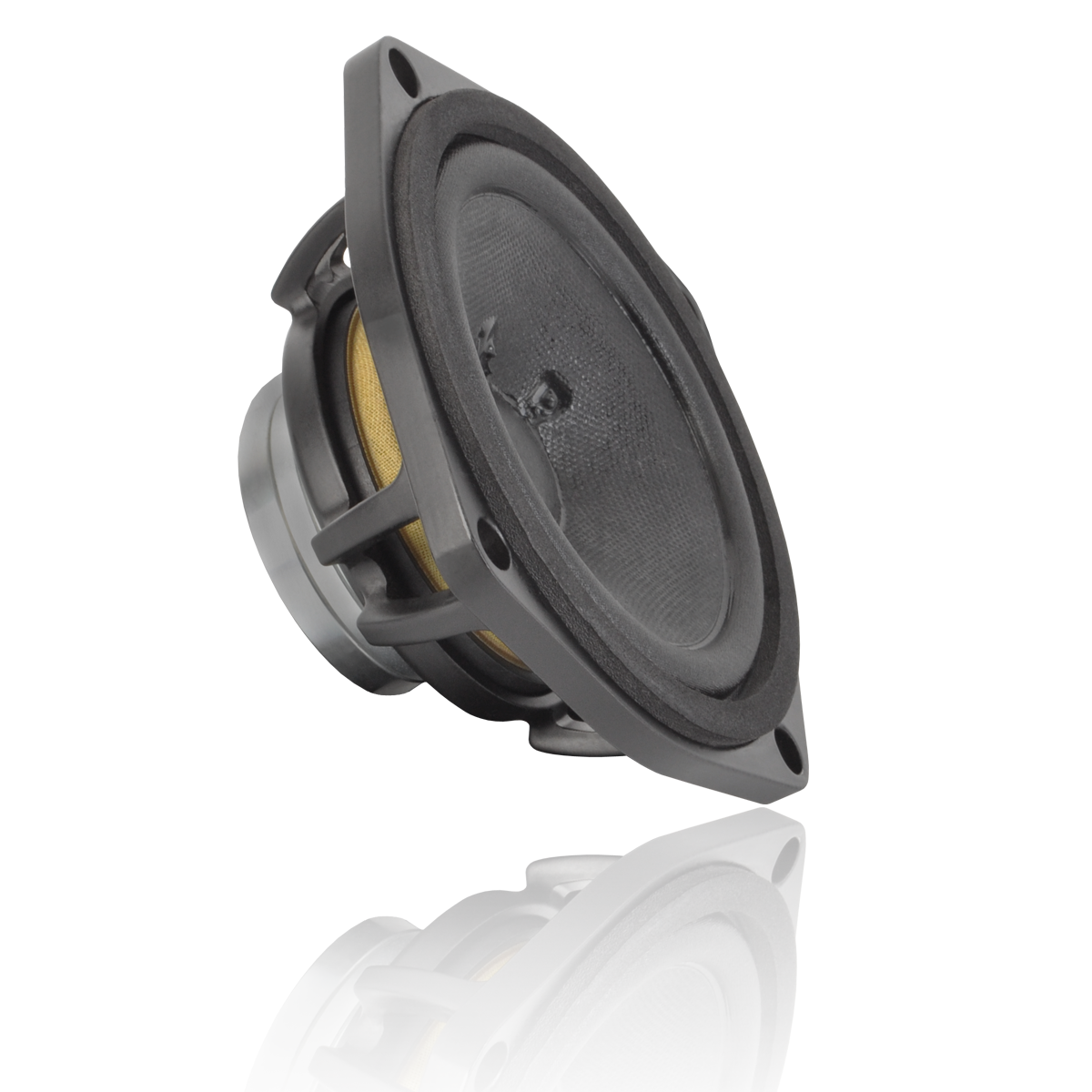

HCS-804 is based on latest vertical array technology for high speech intelligibility and sound quality even in acoustically difficult environments. This slim shape column speakers is equipped with our new high efficient 4,5” neodymium drivers which delivers a high sound pressure with an optimum operating distance. Precisely calculated protective circuits protect the built-in speaker components against thermal overload and guarantee a safe, long-life operation. For an easy installation the housing is equipped with new innovative fly ware design for hanging or stacking installations and a standard 35 mm pole socket for speaker stands. The coverage pattern is 100° x 30° (h x v). The impedance is 16 Ohm.
HCS-804 GS1 (EAN) CODE: 4260318510103
Technical Details
| Model Name | HCS-804 |
|---|---|
| GS1 (EAN) CODE | 4260318510103 |
| System Type | 8 x 4,5“ column speaker |
| Power Rating | 400 W AES 800 W program 1600 W peak |
| Frequency Range (+/- 3 dB) | 125 Hz - 20 kHz |
| Coverage Pattern (hxv) | 100°x30° |
| Sensitivity | 100 dB 1w/1m |
| Maximum SPL | 130 dB |
| Chassis | 1 x STG-X04 50W AES |
| Nominal Impedance | 16 Ohm |
| Input Connectors | 2 x Neutrik NL4 Socket parallel 1+/1- |
| Housing | Birch Multiplex |

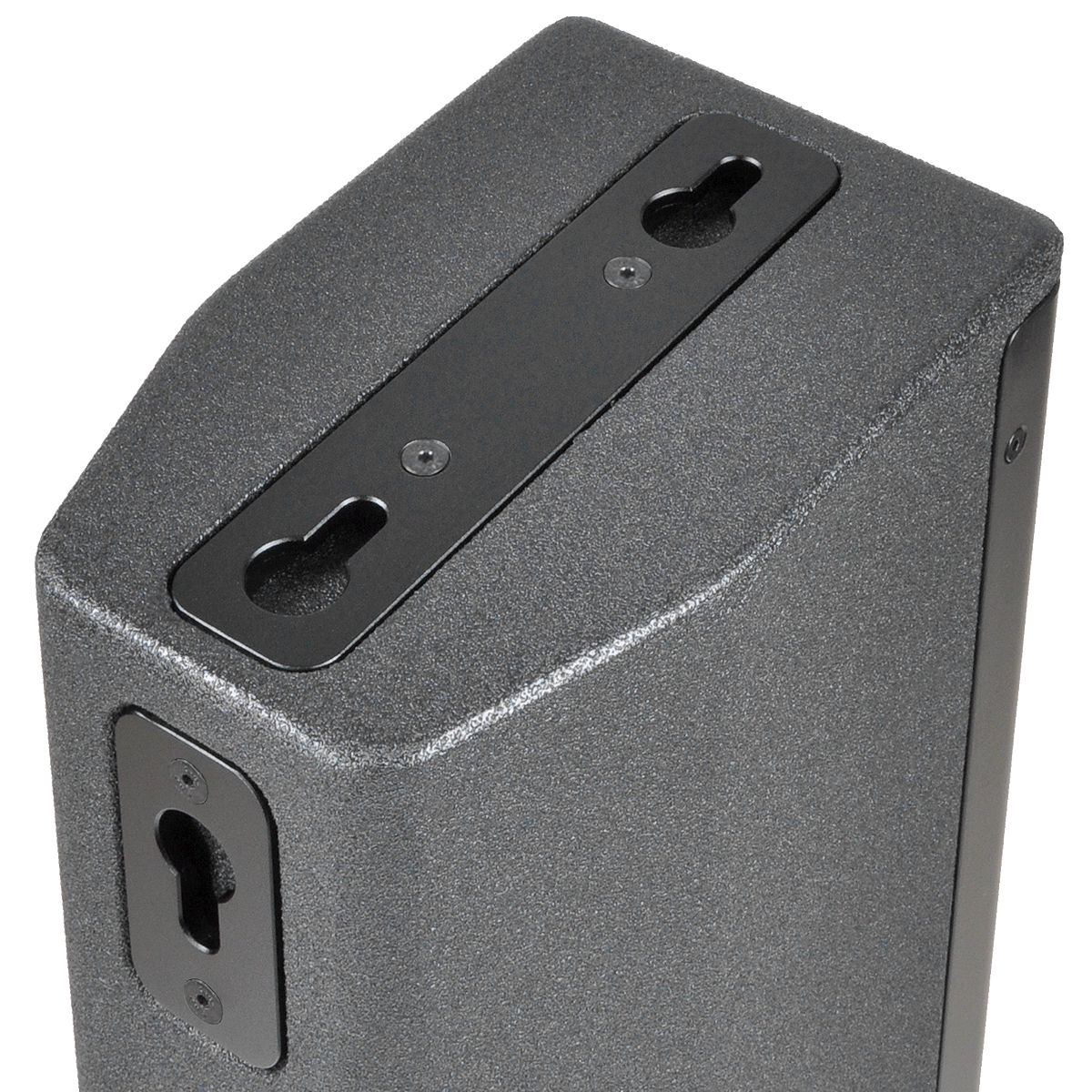

| Suspension/Mounting | Fly ware for hanging or stacking 35 mm pole socket |
| Coating | anti-scratch Polyurethane coating |
| Dimensions (h/w/d) | 1070x140x215 mm |
| Net weight | 12,0 Kg |
Accessories
| Order Code | GS1 (EAN) Code | Description |
|---|---|---|
| HCS-804-BAG | 4260318511278 | Nylon protection transport bag for two HCS-804 |
| STG-SPST | 4260318511032 | Tripot Speaker Stand |
| KA-SP2-05 | 4260318510967 | 5 Meter Speaker cable 2x2,5qmm |
| KA-SP2-10 | 4260318510974 | 10 Meter Speaker cable 2x2,5qmm |
| KA-SP2-15 | 4260318510981 | 15 Meter Speaker cable 2x2,5qmm |
| KA-SP2-20 | 4260318510998 | 20 Meter Speaker cable 2x2,5qmm |
| SA-2100 | 4260318510837 | 2 Channel Class H Amplifier 2 x 1000 W @ 8 ohm |
